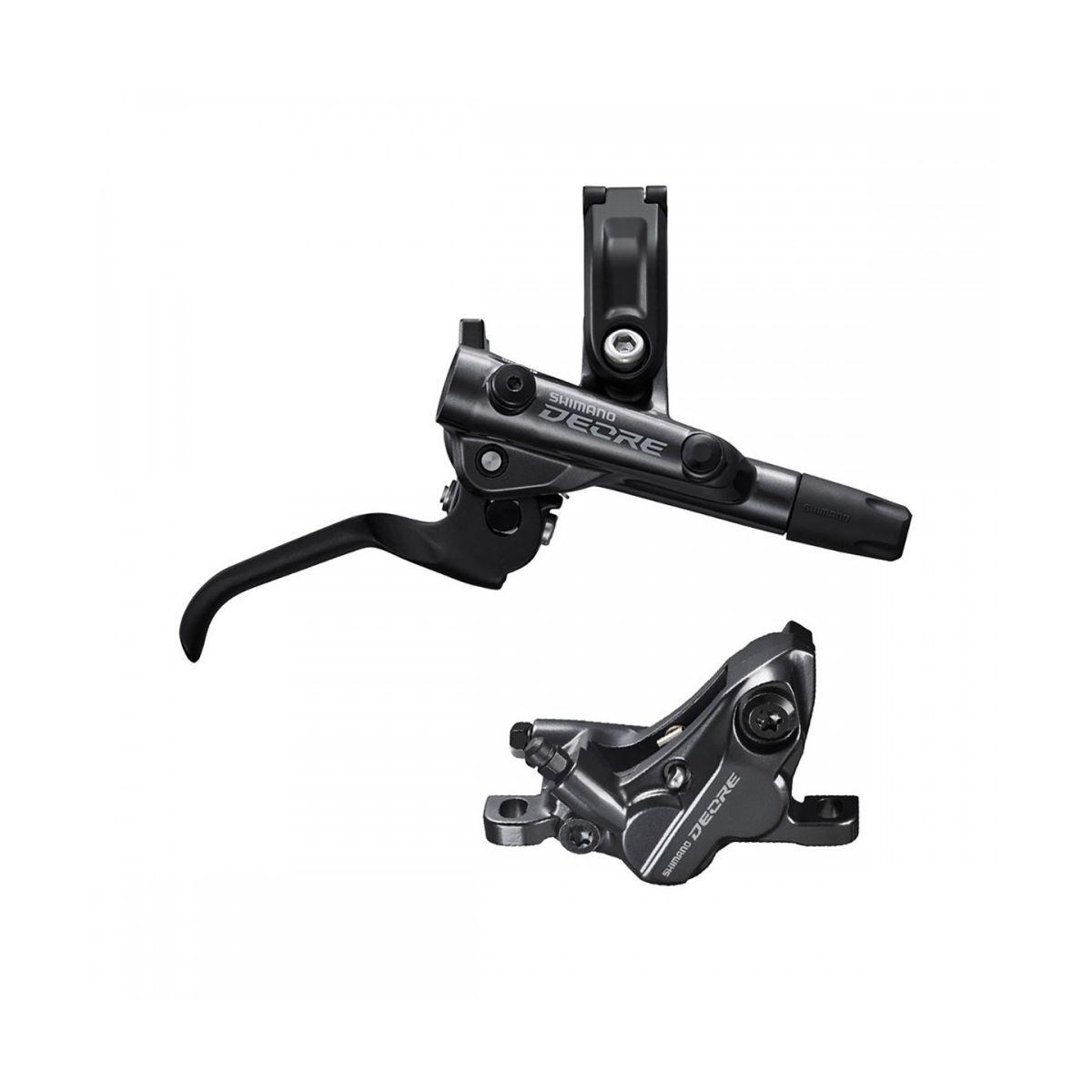

Brake kit Deore M6100

Brake set Shimano Deore M6100 consisting of the BL-M6100 SERVOWAVE brake lever and the powerful BR-M6120 4-piston caliper for Enduro and Downhill use. The combination delivers solid braking performance in all conditions. Trouble-free maintenance is ensured by the proven concept of One Way Bleeding and the Easy Hose Joint System which simplifies brake hose exchanges.

J-Kit (easy hose joint system)
On brake systems with J-Kit hose joints, the brake lever features an integrated olive, making it easier to install and remove the brake hose.

Brake lever Shimano Deore BL-M6100
The Deore BL-M6100 hydraulic brake lever is characterized by Shimano's SERVOWAVE technology, enhancing lever modulation. As the brake lever absorbs a significant amount of braking distance right from the start of its movement, the brake pads make contact with the disc more quickly, leaving more lever travel to adjust braking force. This is why SERVO WAVE braking systems are known for quicker response, better performance, and shorter dead travel.

The 2-finger brake lever design is inspired by the XTR, Deore XT, and SLX series, positioning the clamp at an angle to the handlebar rather than parallel, creating an additional point of contact that offers significantly increased stiffness. For individual customization, the lever is equipped with a tool-based reach adjustment option. The I-Spec EV design allows Deore SL-M6100-I shift levers to be mounted directly onto the brake lever.

Disc brake caliper Shimano Deore BR-M6120
With its 4-piston construction, the Shimano Deore BR-M6120 Postmount caliper is perfect for Enduro and Downhill use. The D03S resin brake pads, combined with the powerful caliper, ensure very good deceleration.

Hydraulic disc brake set:
BL-M6100 brake lever
BR-M6120 caliper incl. brake pads
SM-BH90-SS brake hose

Materials:
lever: aluminium (anodized)
master cylinder, caliper: aluminium (painted)
pistons: ceramic
hardware: stainless steel, steel

Compatibility:
Brake pads: D02S Metal, D03S Resin
Discs: SM-RT54, SM-RT56, SM-RT64, SM-RT66 / 140-203 mm (not included)
