Mach1

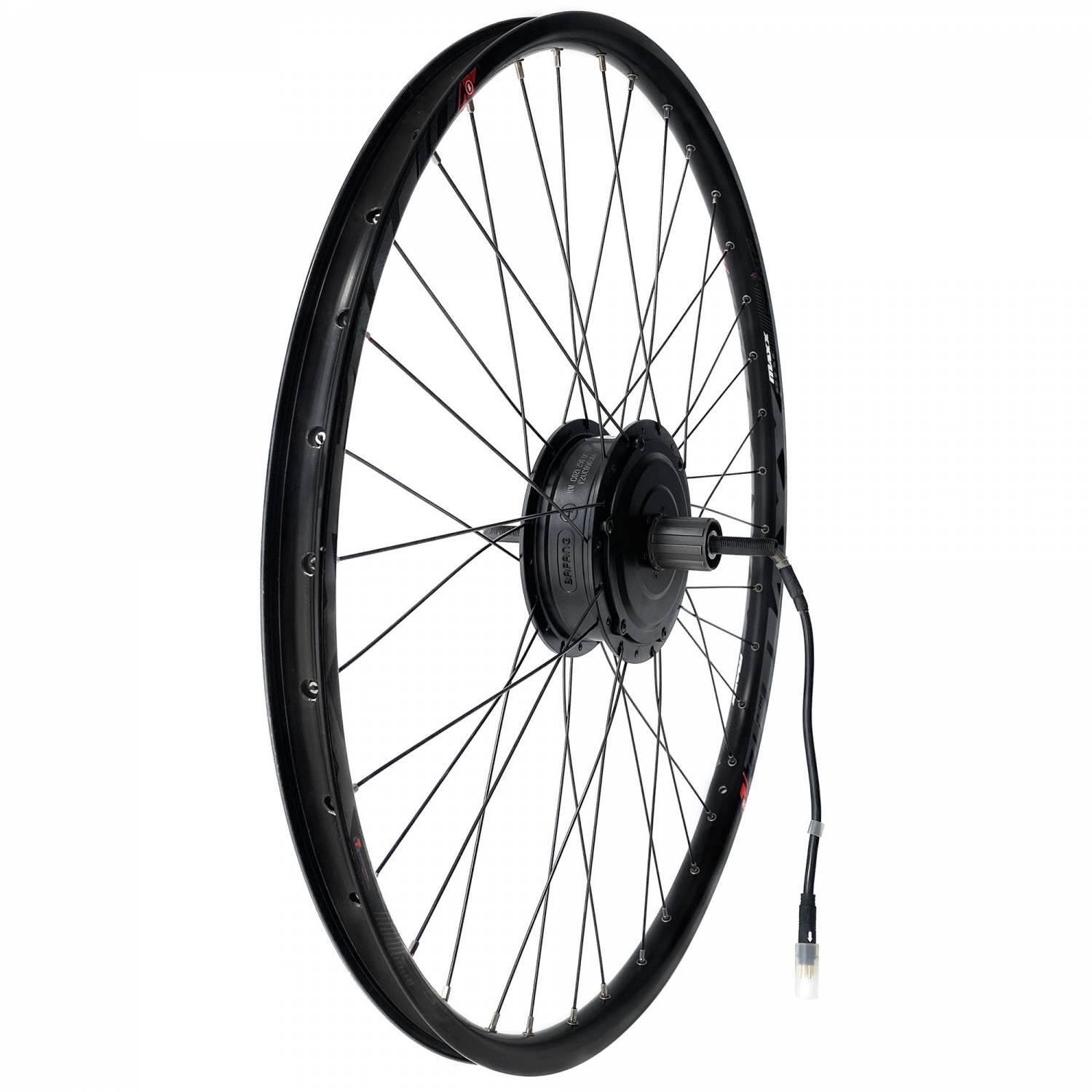

Bike wheel T. Maxx 36H - Bafang H400B 36V 250W

Enhance your mountain biking experience with the bike wheel Mach1 T. Maxx 36H - Bafang H400B 36V 250W, the power and reliability of Mach1.

$558.06 $414.25 -26%
In stock
Shipped in 6 days
Description
+
  • Rear wheel for E-Bike 29" with integrated motor.
  • Rim Mach1 MAXX - 36H - 29" (622x25C).

MOTOR

The Bafang H400B rear-wheel motor provides reliable support with 250 or 350 W of power and a maximum torque of 45 Nm. Solid and efficient, this motor considerably improves riding comfort and is suitable for eTour and eCity bikes. Compatible with sprockets and disc brakes.

  • Position: rear motor
  • 36 V - 250 W
  • Wheel diameter (inches) 20/26 / 27.5 / 28
  • Gear drive design
  • Rated voltage 36/43/48
  • n0 (rpm) 325 ; 245
  • Rated power 250
  • nT (rpm) 290 ; 205
  • Maximum torque 45 N.m
  • Power ≥ 80
  • Operating temperature -20-45 ℃
  • Weight 3,3 Kg.
  • Disc brake
  • Installation width 138
  • Max. diameter 158.5
  • Cable connection via axle, right-hand
  • Cable length (mm), connection type 250 G9.1
  • Sprocket for 6/7/8/9 speeds.
  • Radii 36H * 12G
  • Speed (impulsion/rev) 6
  • Speed ratio 1:5
  • Tests and certifications: IP X5 code and ROHS / CE certifications.
  • Wheel size: 29".
  • Wheel position: rear
  • For tires: tube-type
Additional information
+
BrandMach1
Supplier referenceR76-29-MAXX-HM400B
Colorblack
Main colorBlack
attributes.quantity_per_unit1
StabilityATV
