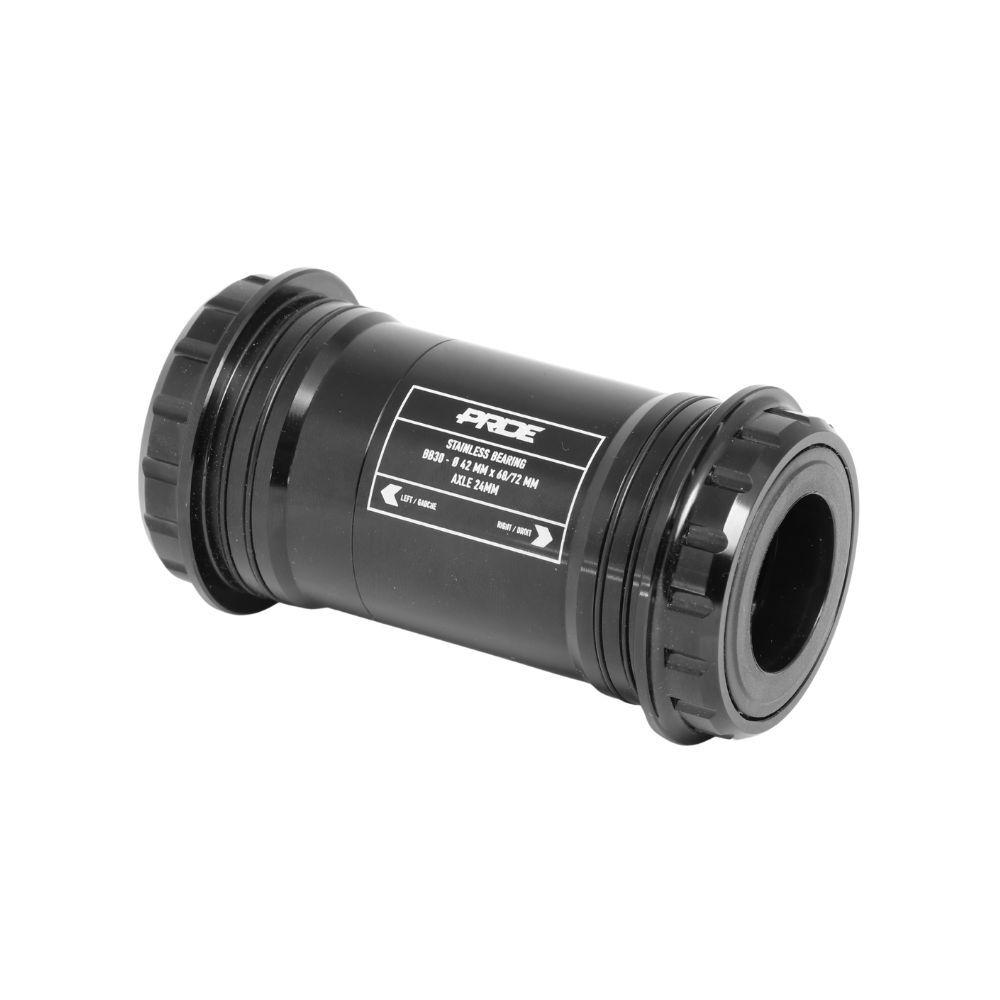

Bottom bracket BB30 Interlock

Thanks to its "Interlock" design, the Pride Racing bottom bracket is ideal if you don't have the press to insert the bearings into your frame. Just position the two cups on each side of the frame and screw the two parts together using a SHIMANO Hollowtech II tool. All you have to do is tighten everything up and you're good to go!

This bottom bracket features two CNC machined aluminium 7075 cups that are anodised for a perfect finish. It's designed to install a 24mm crankset on a frame that accommodates a Pressfit BB30 bottom bracket with an internal frame diameter of 42mm and a width of 68mm.

It is equipped with stainless steel annular bearings, ensuring a long lifespan.

• Type of bottom bracket: BB30
• Mounting: Screwed
• Axle diameter: 24mm
• Internal frame diameter: 42mm
• Width: 68mm
• Bearing: Inox6805-2RS
• Material: Aluminium 7075
• Weight: 124g
