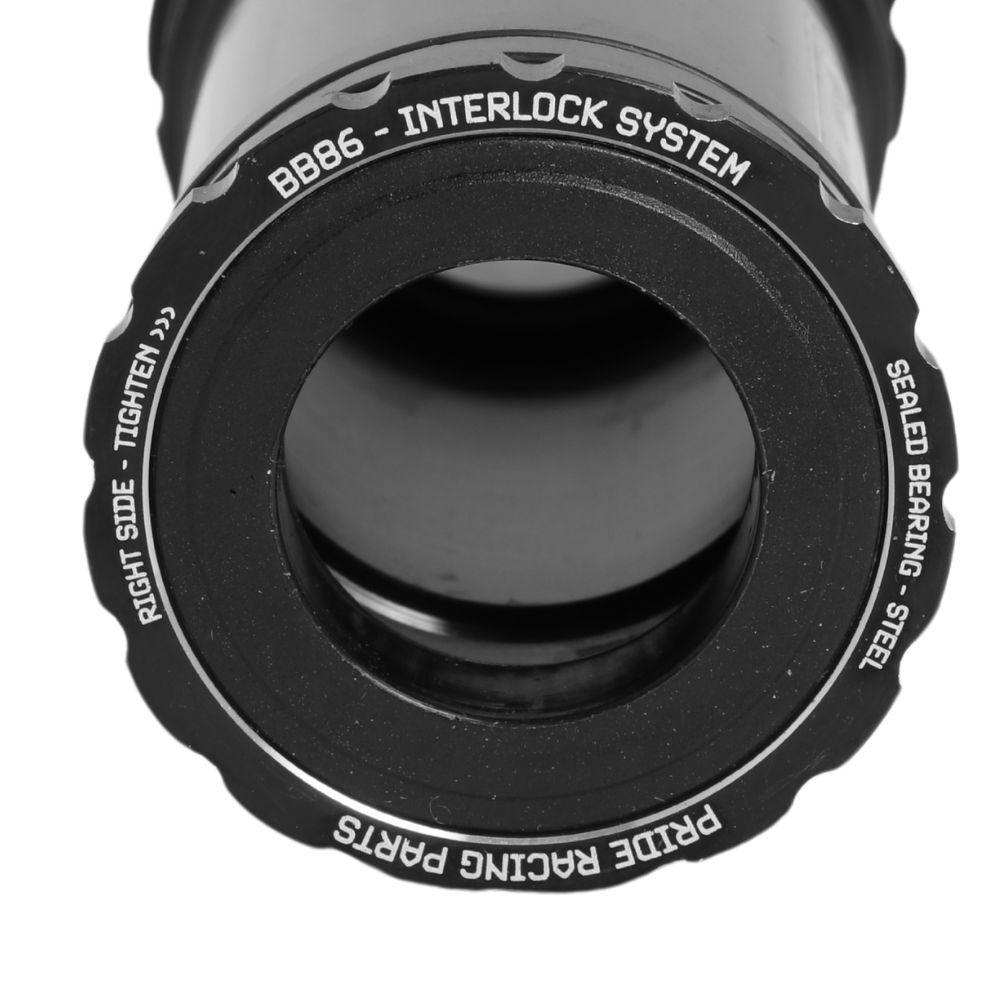

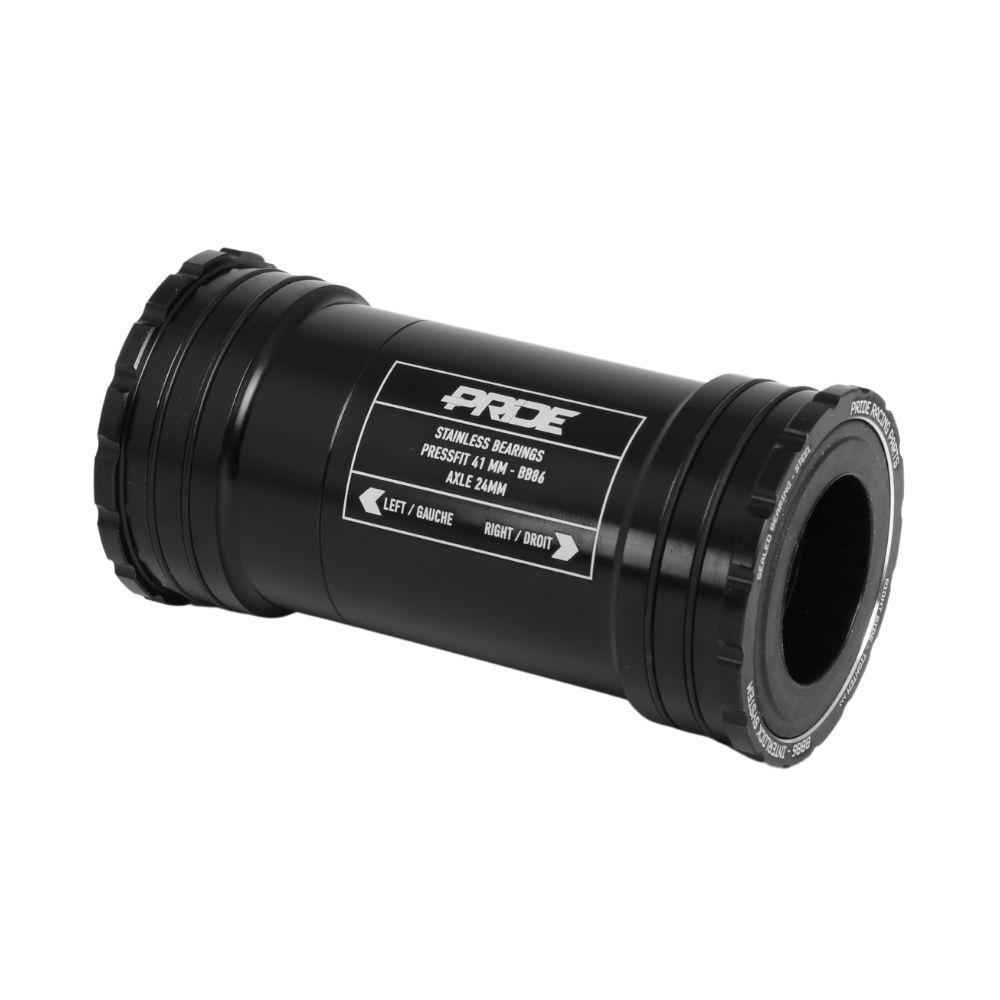

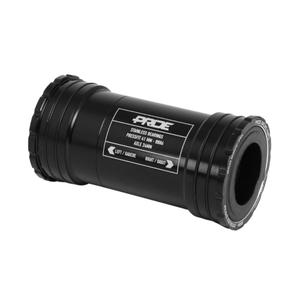

Stainless steel bottom bracket bb86 Interlock

BOTTOM BRACKET PRIDE RACING BB86 INTERLOCK STAINLESS STEEL

Thanks to its "Interlock" design, this bottom bracket is easier to install than a standard BB86 Pressfit bottom bracket. You simply position the two bearings on either side of the frame and screw the two parts together. Using a Shimano-type bottom bracket tool, all you need to do is tighten it up!

The BB86 design has several benefits, including greater stiffness and better power transfer due to its wider bottom bracket. It is also compatible with different types of cranksets, such as hollow axle cranksets.

This bottom bracket features stainless steel angular contact bearings, ensuring a long lifespan. It is built around a CNC machined 7075-T6 aluminium body, contributing to its stiffness when pedaling.

SPECIFICATIONS

• Bottom bracket type: BB86
• Material: Aluminium 7075-T6
• Mounting: Screw-on
• Inner diameter: 24mm
• Shell diameter: 41mm
• Width: 86mm
• Bearing: Stainless Steel - 6805
• Weight: 108g
