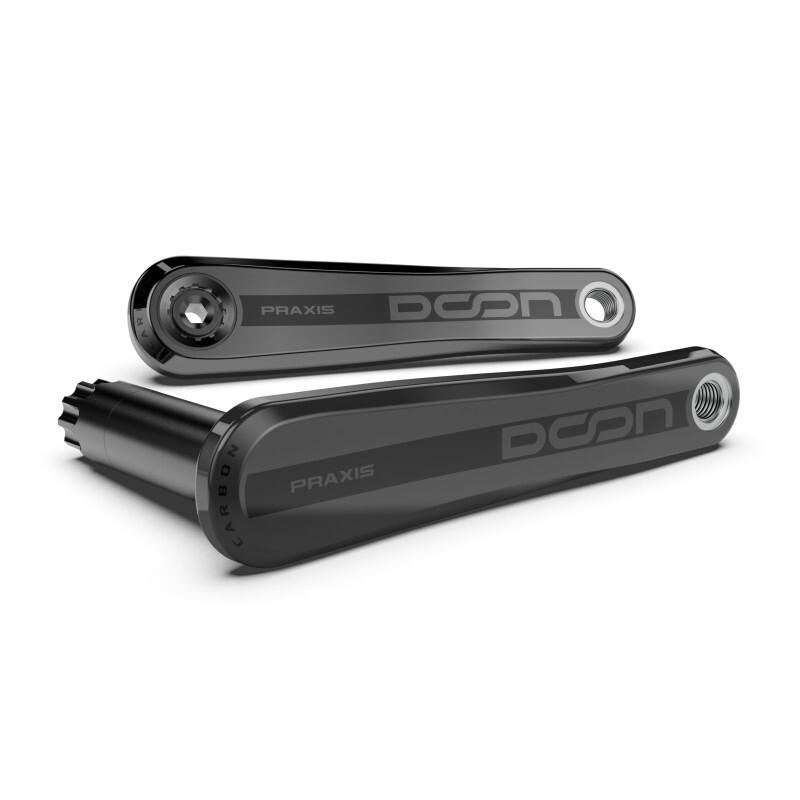

Carbon crankset Doon

SPECIFICATIONS

CRANKSET Full carbon crankset or just the arm. See the dropdown menu for available options.

BUY IT IF: You want our lightest professional-level carbon crank that is compatible with Shimano/SRAM/Campy 10/11/12-speed groups.

MATERIAL Carbon arm / Aluminium spider and rings / M30-THRU alloy axle (30mm/30mm)

CHAINRING LevaTime II X-RING/48/32, 50/34, 52/36 /> SHIMANO
SRAM - All regular models or "Flat-Top"

WEIGHT

342g: Arm set 172.5
542g: 172.5 with 48/32
570g: 172.5 with 50/34
574g: 172.5 with 52/36
602g: 172.5 with 53/39

CHAINLINE 2X = 44.5mm ROAD / NOT compatible with Shimano GRX front derailleurs
1X = 45.5mm ROAD

Q FACTOR 147mm

DRIVETRAIN GROUP SHIMANO - Compatible with Shimano 10/11/12-speed Di2 and mechanical groups.
SRAM - Compatible with SRAM 10/11/12-speed e-Tap and mechanical groups.
CAMPY - Compatible with Campy 10/11/12-speed EPS and mechanical groups.

MAIN BOLT 8mm alloy main bolt for automatic installation/extraction

M30-THRU = 30mm drive bearing / 30mm non-drive bearing
Available in BSA / BB86 / T47 I.B / T47 E.B / BB30 / PF30 / 386EVO / BBRight
