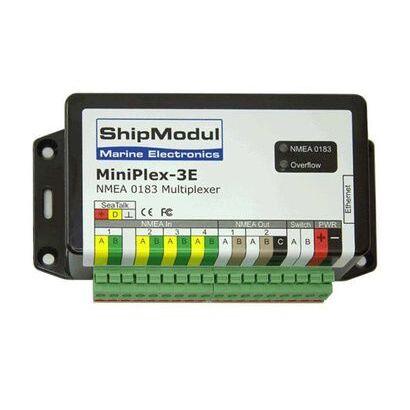

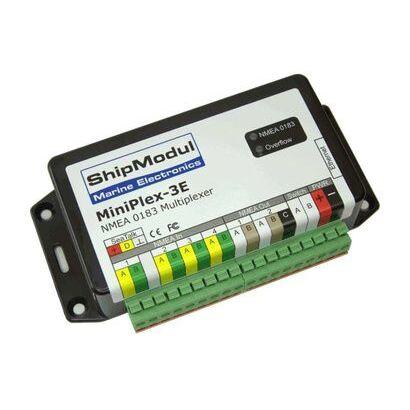

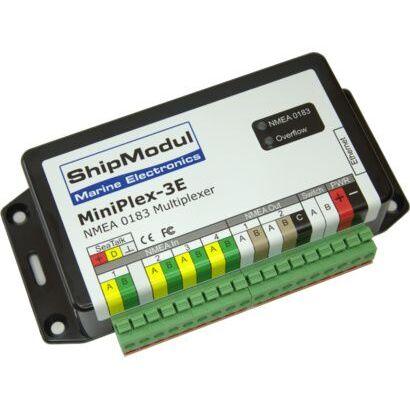

Multiplexer ethernet version Miniplex-3E

With the Miniplex 3ETH, connect data from 3 sources (NMEA0183, SeaTalk, AIS). Four NMEA0183 ports, one of which can be configured for the Seatalk network (depth, speed, wind, GPS and autopilot), two NMEA0183 output ports (radar and VHF with GPS and AIS) and an Ethernet interface for connection to a computer 10BASE-T/100BASE-TX interface

The MiniPlex-3ETH is an Ethernet-enabled NMEA multiplexer, combining data from up to 4 navigation instruments into 2 NMEA outputs (transmitter ports), and an Ethernet interface for connection to a computer. The Ethernet connection can coexist and data can be routed between the two interfaces. It also supports AIS andautres NMEA devices with high transmission speeds, up to 57600 baud.

Using a MiniPlex-3ETH multiplexer has major advantages:

• Instrument data available via an Ethernet connection.
• UDP and TCP data is exchanged between devices.
• Fits into an existing Raymarine Seatalk® network.
• Inputs are galvanically isolated.
• Controls source, destination and transmission rate of NMEA phases.
• Switching between navigation computer and navigation via GPS.
• Switching between primary and secondary instruments in case of failure.
• Direct connection to an Ethernet port, without problems.
• It fulfills the Plug & Play function precisely.
