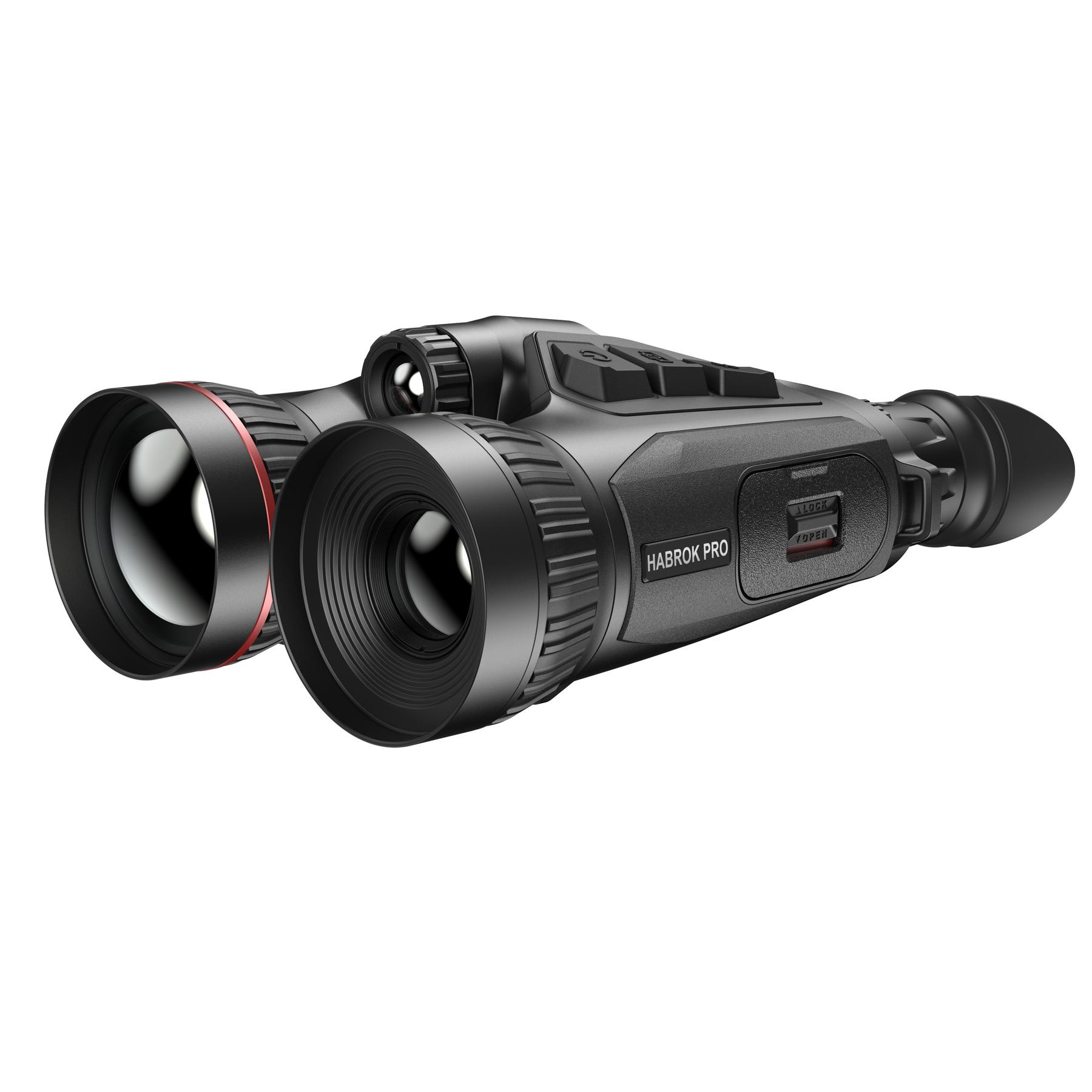

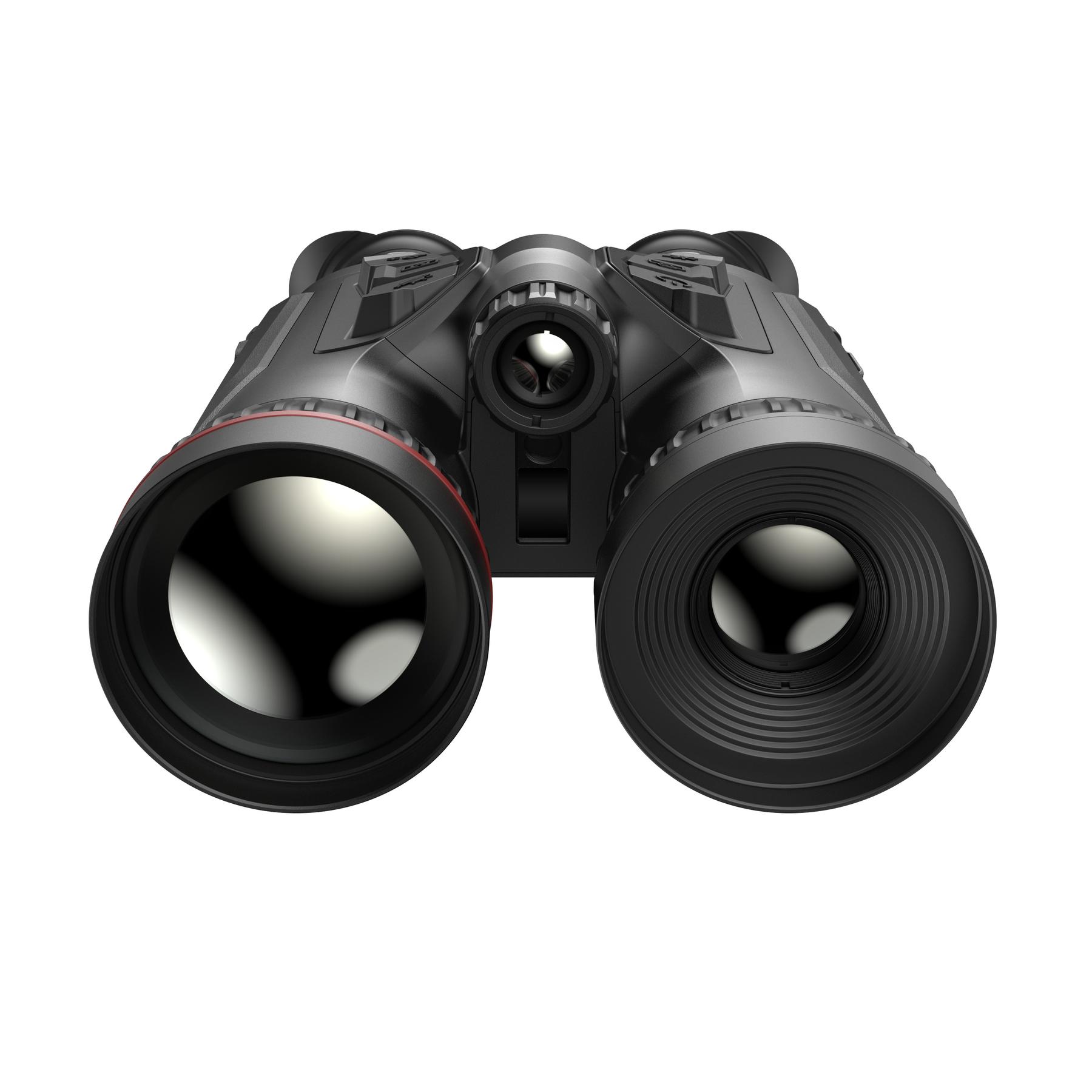

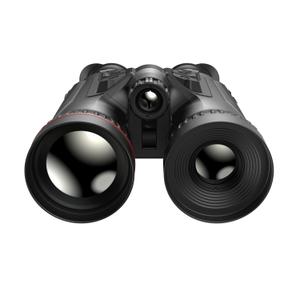

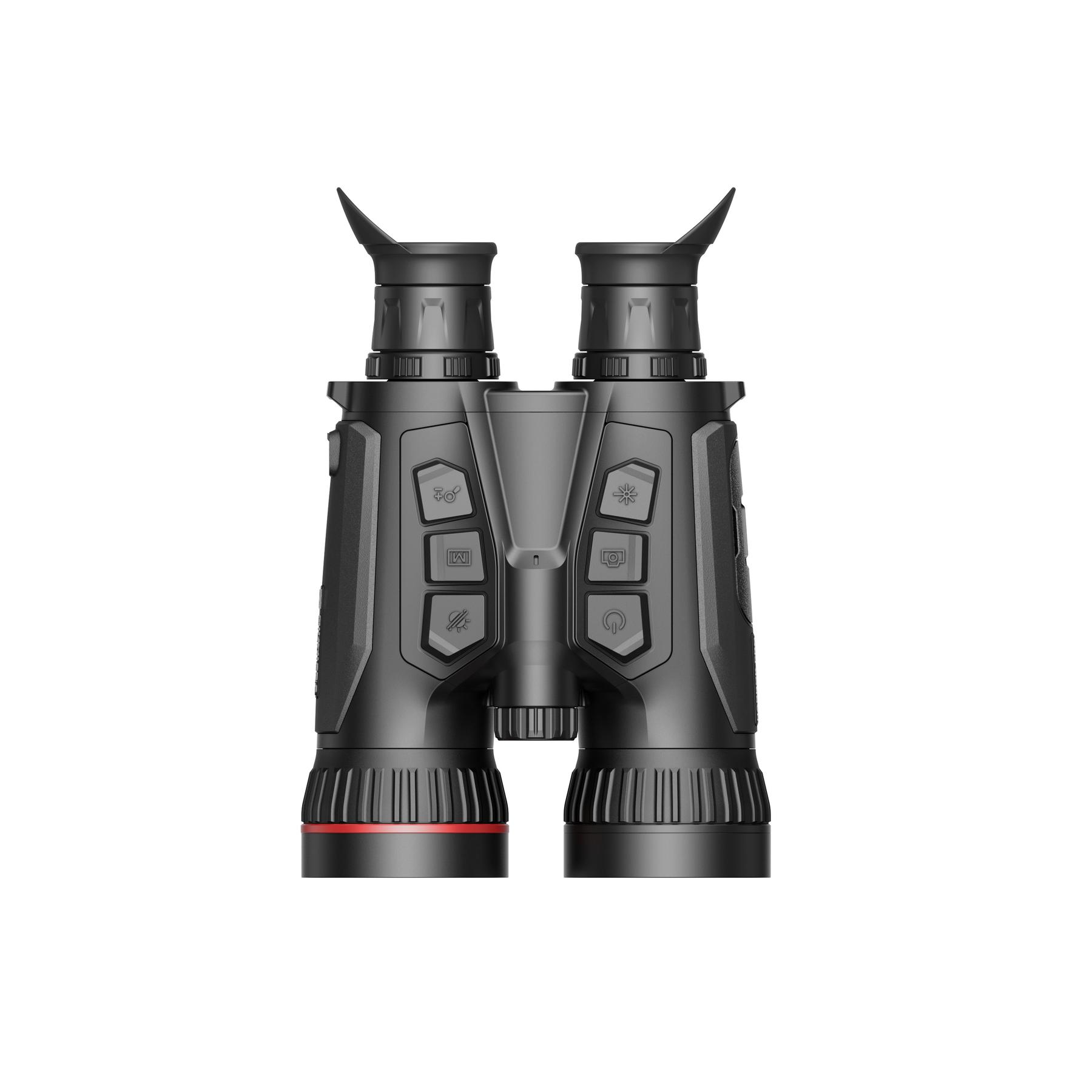

Binoculars Habrok Pro HQ60LN

HIKMICRO HABROK Pro HQ50LN is an ultra-powerful and innovative digital and thermal binocular designed specifically for use at night and during the day. It features a thermal detector of 1,280 x 1,024 @ 12 µm (NETD < 18 mK), a 60 mm thermal lens (F 1.0), and an advanced 4K digital detector (3840 x 2160) with a 5.5x-22x lens and a 60 mm lens (F 2.2), ensuring perfect image quality and detail recognition in various weather and light conditions. Coupled with a laser rangefinder of 1,000 m (accuracy ± 1m) and a replaceable 940 nm IR emitter, these all-in-one binoculars can primarily be used for hunting, bird watching, wildlife tracking, rescue, and maritime research.

Main features

• Resolution of 1,280x1,024, with thermal sensor @12 μm
• High sensitivity thermal detector NETD < 18 mK
• 60 mm lens, F1.0 with a detection range of up to 3,100 m
• High-resolution 4K CMOS detector (3840 × 2160)
• 60mm digital lens F2.2 with 2.6x to 20x digital zoom
• 0.49 inch OLED screen with a resolution of 1920 x 1080
• Built-in 940 nm IR lamp
• Precision laser rangefinder (±1 m) with a distance measurement of up to 1000m
• Lightweight at 1,050 g with the battery, with a compact and ergonomic design

THERMAL MODULE

• THERMAL SENSOR: VOx Uncooled Focal Plane Arrays
• RESOLUTION: 1,280 × 1,024
• FRAME RATE: 25 Hz
• PIXEL PITCH: 12 μm
• SPECTRAL BAND: 8 µm - 14 µm
• NETD: < 18 mk
• LENS (FOCAL LENGTH): 60 mm
• APERTURE: F 1.0
• DIGITAL ZOOM: 1 ×, 2 ×, 4 ×
• MAGNIFICATION: 2.6 - 20
• DETECTION RANGE: 3,100 m
• MINIMUM FOCUS DISTANCE: 3 m
• FOCUS MODE: Manual
• FIELD OF VIEW (H × V), DEGREES/M @100 M: 14.6° × 8.8° (H × V)/ 25.6 m × 15.4 m @ 100m

OPTICAL MODULE

• IMAGE SENSOR: 1.88" CMOS progressive scan
• MAX. RESOLUTION: 3840 × 2160
• FOCAL LENGTH: 60 mm
• APERTURE: F2.2
• IMAGE ENHANCEMENT: Yes
• MINIMUM FOCUS DISTANCE: 3 m
• MAGNIFICATION: 5.5 - 22.0 (x4 zoom)
• FIELD OF VIEW (H × V), DEGREES/M @100 M: 7.3° × 4.1° (H × V)/ 12.6 m × 7.2 m @ 100m
• SMART IR: YES
• IR ILLUMINATOR WAVELENGTH: 940 nm
• NIGHT VISION RANGE: 350 m

IMAGE DISPLAY

• DISPLAY: 0.49 inch, OLED, 1920 × 1080
• PALETTES: Thermal Hot White, Hot Black, Hot Red, Fusion / Optical: Day, Night, Auto
• FFC MODE (FLAT FIELD CORRECTION): Auto, Manual, External correction
• EXIT PUPIL: 8 mm
• EYE RELIEF: 15 mm
• DIOPTRIC: -5 D to +3 D
• BRIGHTNESS ADJUSTMENT: Yes
• TONAL ADJUSTMENT: Cold, warm
• CONTRAST ADJUSTMENT: Yes
• PRO IMAGE: Yes
• PRO ZOOM: Yes

SYSTEM

• INTERNAL MEMORY: 64 GB
• VIDEO RECORDING: Yes
• PHOTO RECORDING: Yes
• AUDIO RECORDING: Yes
• STANDBY MODE: Yes
• PIP: Yes
• HOTSPOT: Yes
• FOLLOW HOT POINT: Yes
• GPS: Yes
• DIGITAL COMPASS: Yes
• LOCAL ALBUM: Yes

POWER SUPPLY

• BATTERY TYPE: Replaceable and rechargeable Li-ion battery
• BATTERY OPERATING TIME: 9.5 hours of continuous operation with hotspot function off (@25°C)
• TYPE-C POWER: Yes

GENERAL

• PROTECTION LEVEL: IP67
• DIMENSION: 152.8 mm × 81.95 mm × 231.5 mm
• WEIGHT: 1050 g with battery
• OPERATING TEMPERATURE: -30°C to 55°C
• INTERPUPILLARY ADJUSTMENT RANGE / 60 mm to 74 mm
• MOUNTING ADAPTER: 1/4''-20-UNC

LASER RANGEFINDER

• LASER SAFETY CLASS: Class 1
• WAVELENGTH: 905 nm
• MAX. MEASUREMENT RANGE: 1000 m
• MEASUREMENT ACCURACY: ± 1 m
• MIN MEASUREMENT DISTANCE: 10 m
