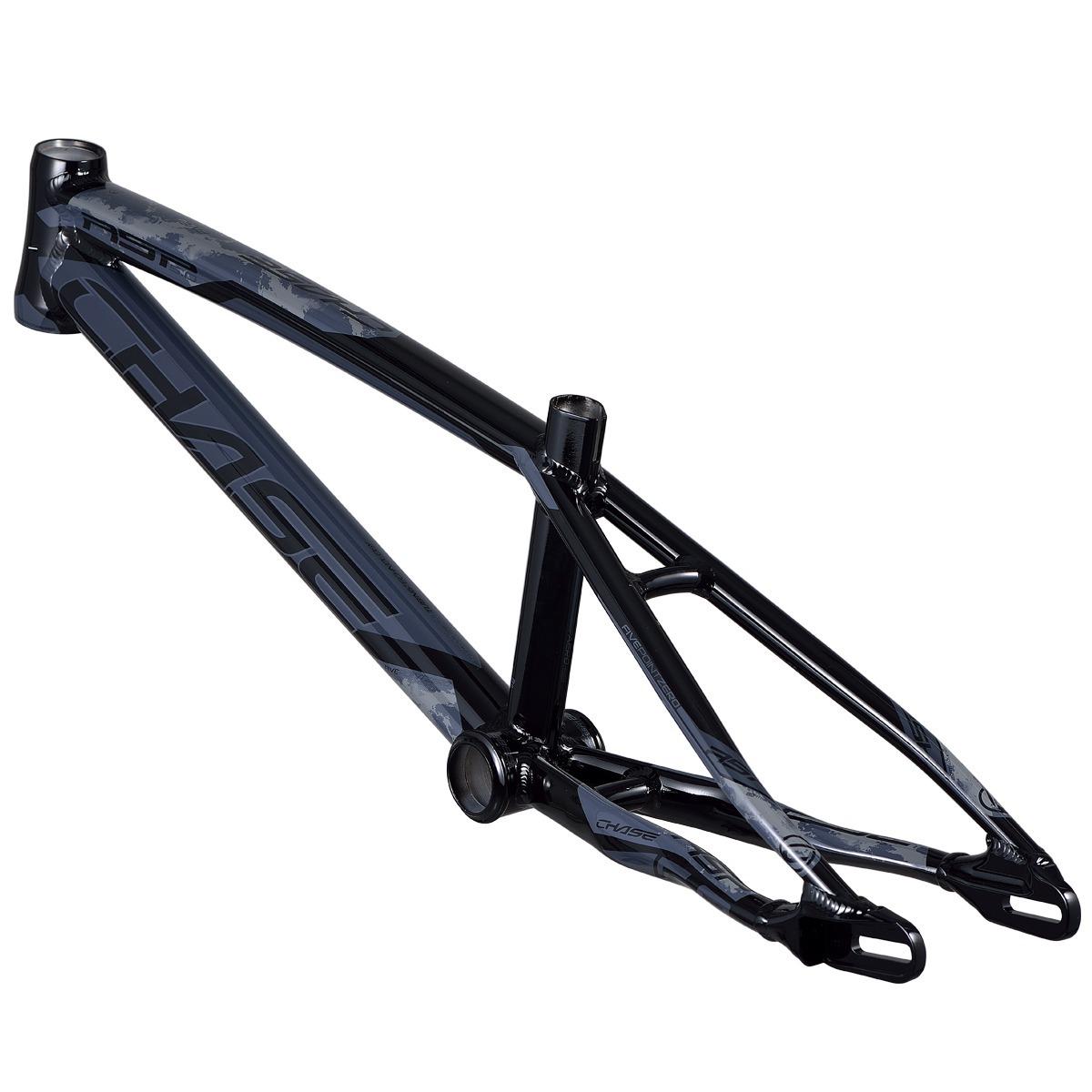

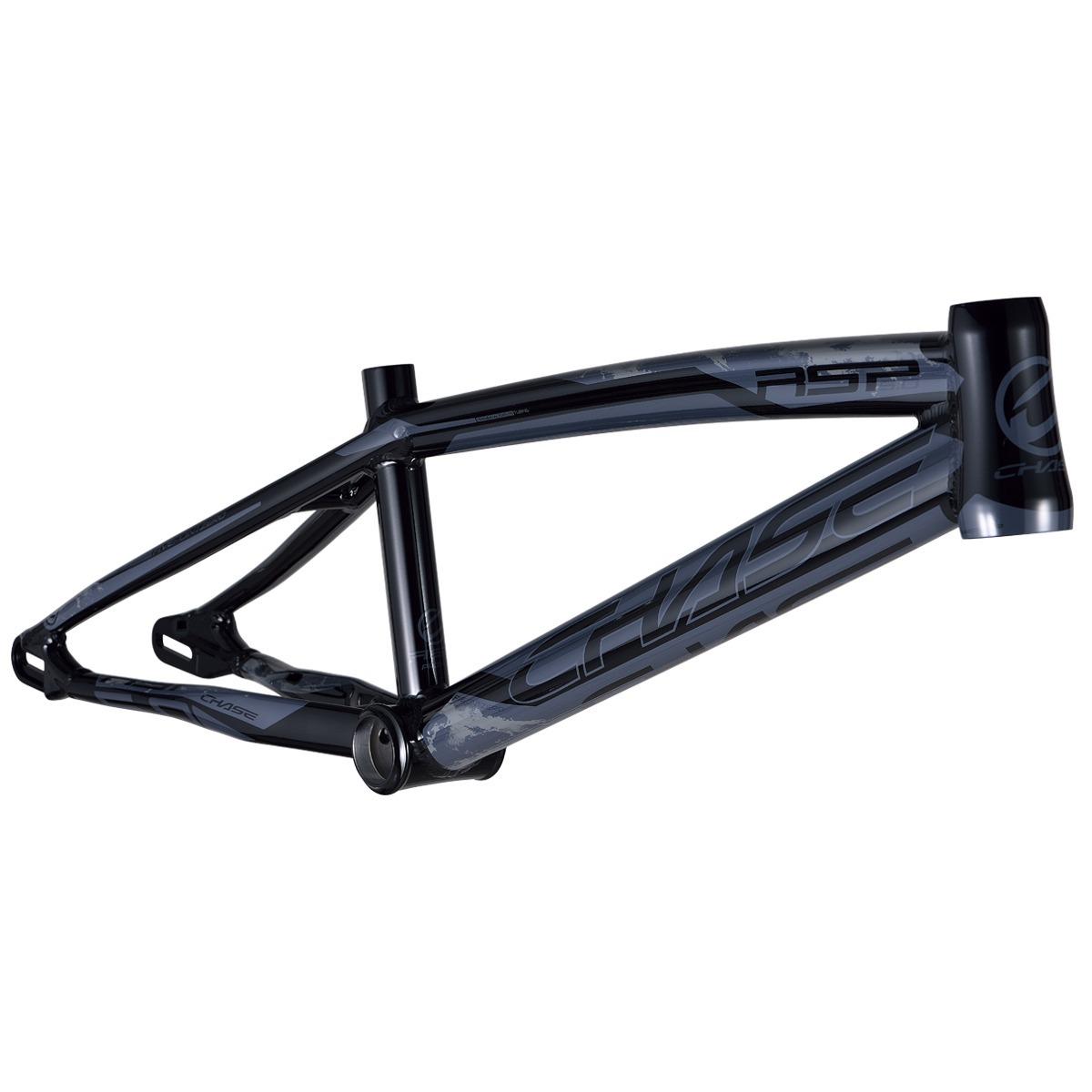

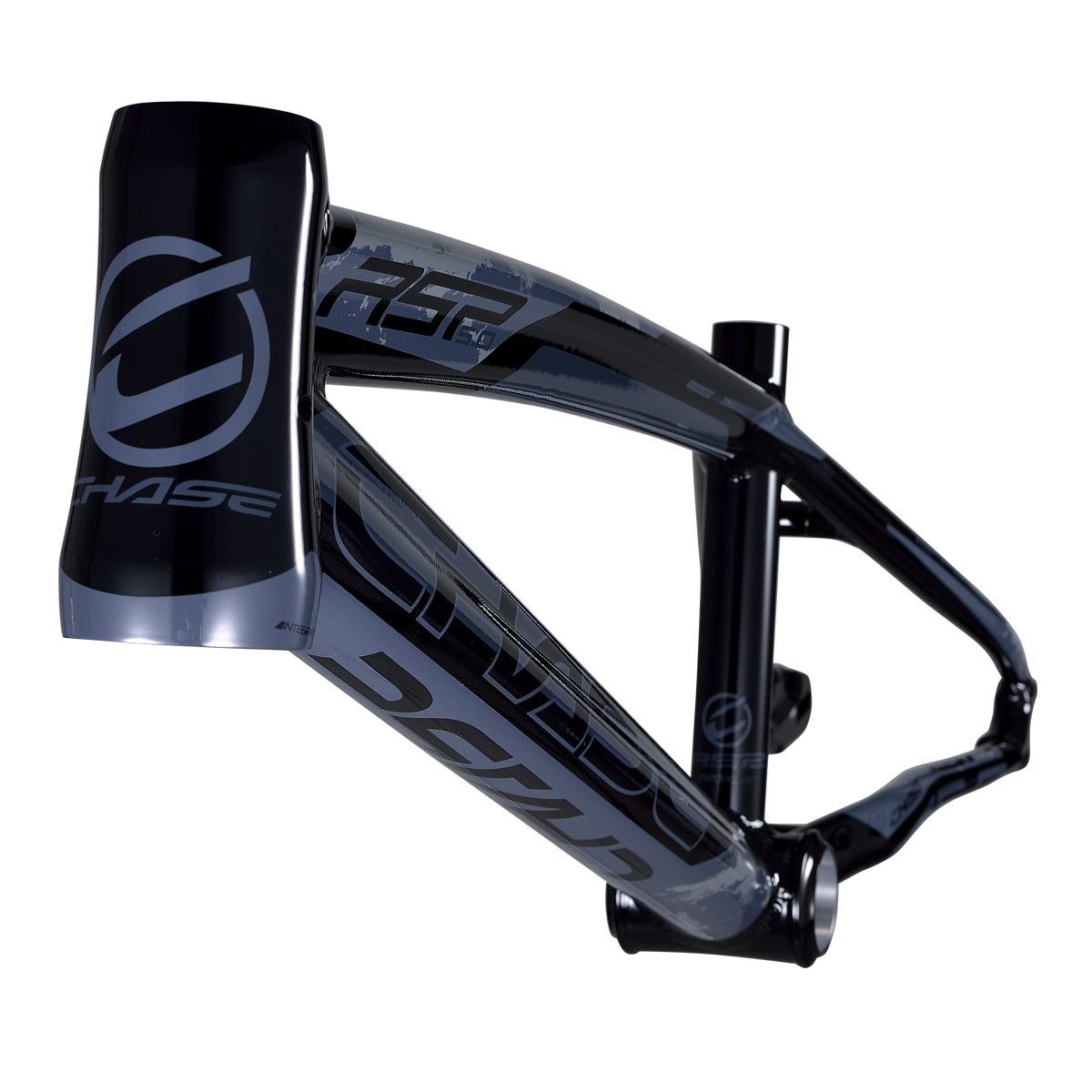

BMX Frame RSP 5.0 Expert

The CHASE RSP 5.0 frame is the culmination of all the latest upgrades, making it our best aluminium frame to date. It continues to use the winning geometry that has been employed by pro riders Connor Fields and Joris Daudet for years, designed exclusively for disc braking. Its dropouts have been optimised, now offering better clearance for a wide range of Post mount and Flat mount disc brake callipers.

FEATURES:

• 7005 T6 Aluminium Frame (Premium Ultralight)
• Hydroformed double butted top tube
• Hydroformed triple butted down tube
• Aero shape system seat tube
• Rear stays with "muscle forming" design
• New internal cable routing
• Compatible exclusively for Post Mount and Flat mount disc braking
• New closed rear dropouts machined CNC for better clearance for a wide range of disc brake callipers

from Mini to Expert

• Integrated headset IS 42/42
• Euro BSA 68x73mm bottom bracket
• Compatible with AERO 25.4mm clamp and seat post

from Expert XL to Cruiser Pro+ and OS20 sizes

• Integrated tapered headset IS 42/52
• Press Fit 86x92mm bottom bracket
• Compatible with AERO 27.2mm clamp and seat post

COMPATIBILITY:

• Integrated 1-1/8'' headset (from Mini to Expert)
• Tapered integrated headset Top 1-1/8'' - Bottom 1.5'' (from Expert XL onwards)
• Euro BSC/BSA bottom bracket (from Mini to Expert)
• Press Fit BB86 bottom bracket (from Expert XL onwards)
