Frame HSX AL 2025

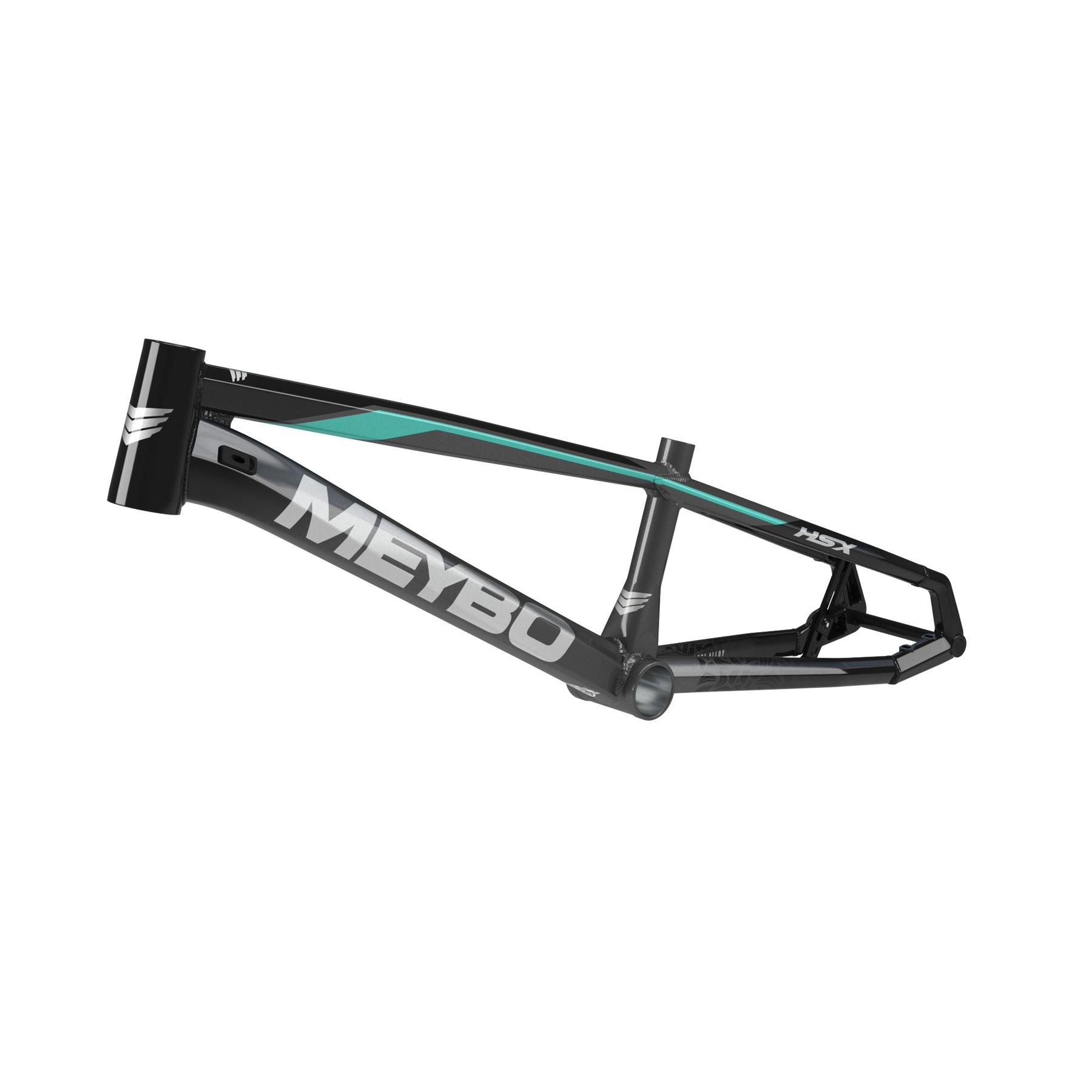

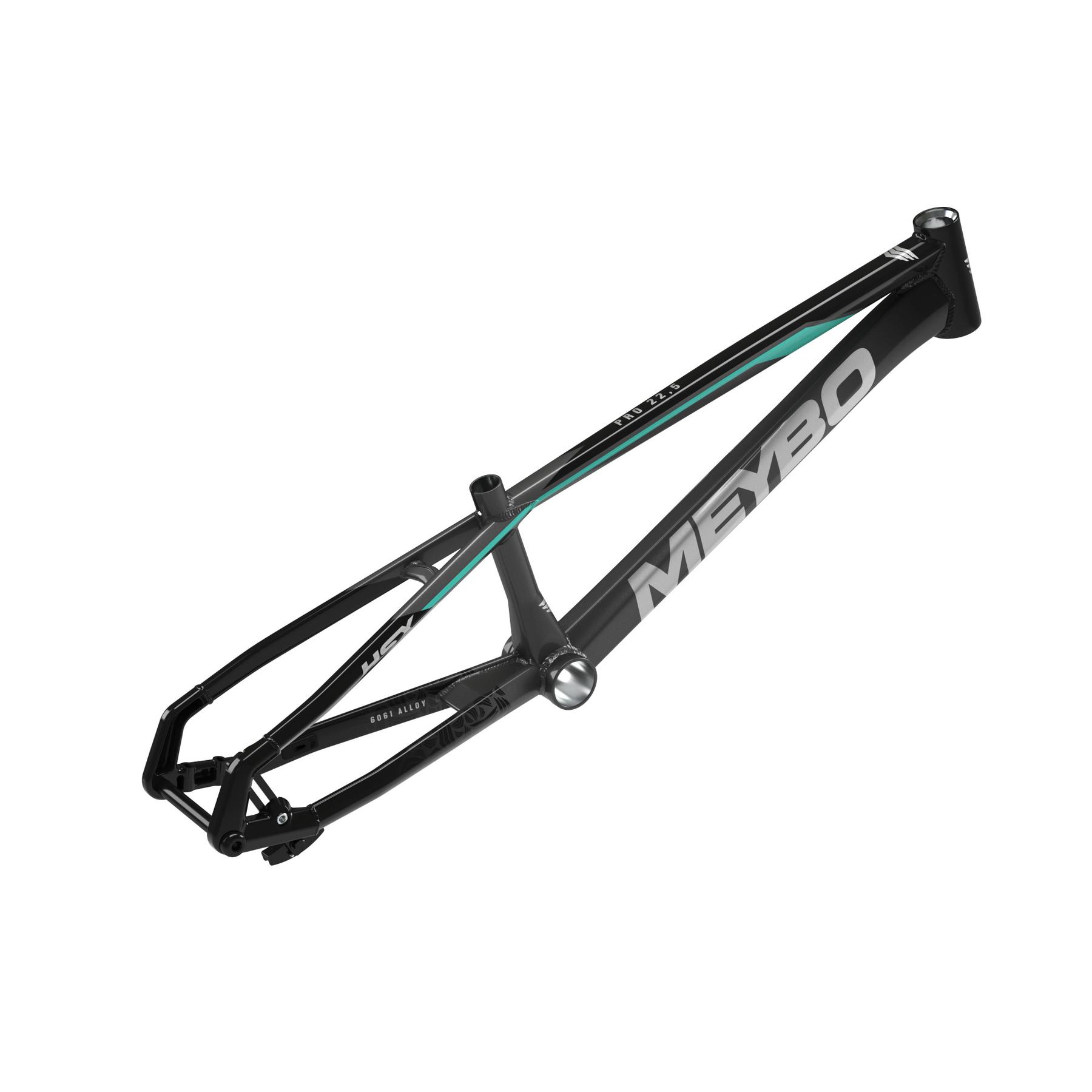

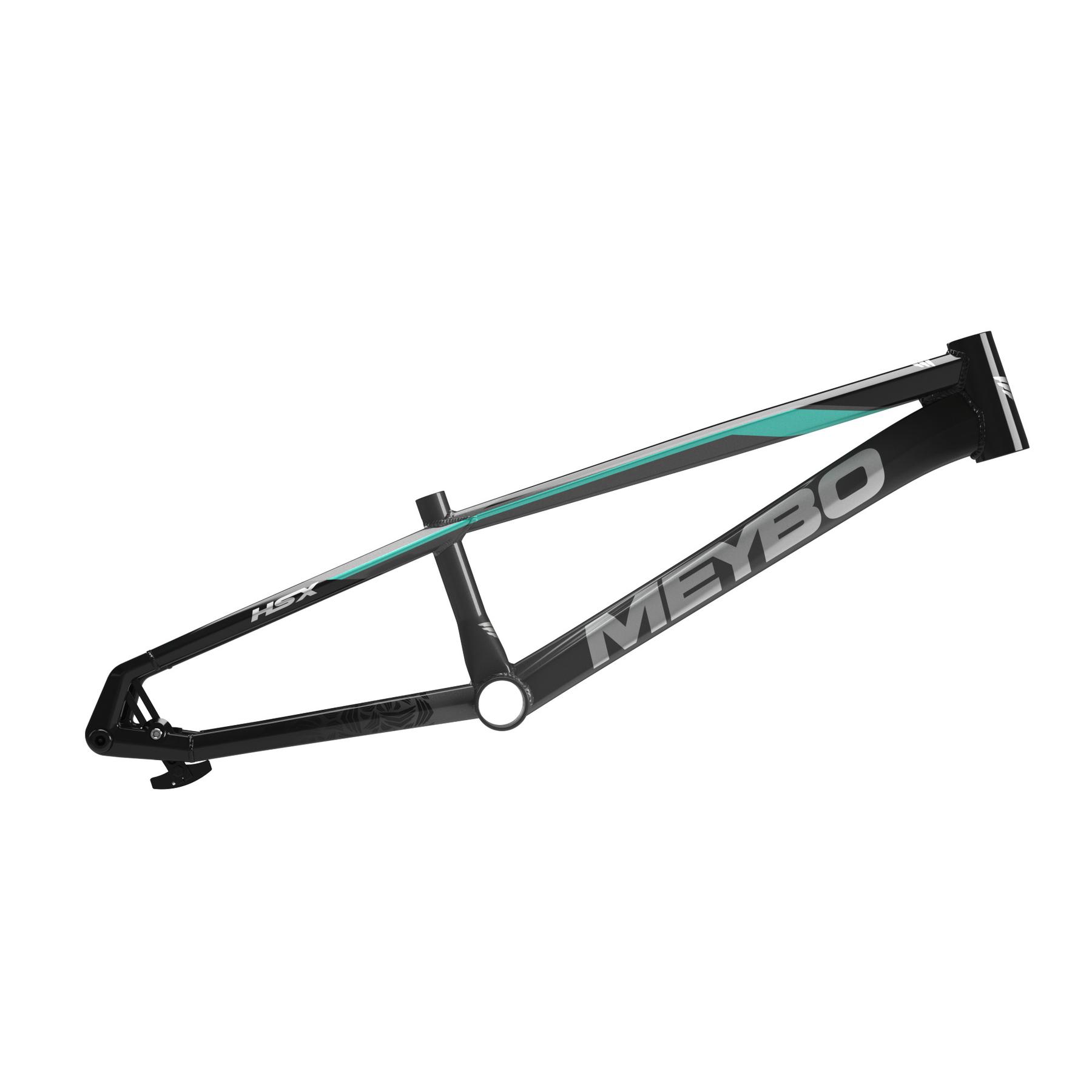

FRAME MEYBO HSX AL 2025

The most high-performing frame in the MEYBO range, the HSX AL, is a competition piece. This frame is the perfect choice for those looking for something very high-performing without necessarily opting for a carbon frame. With increased stiffness and cutting-edge technology, this new HSX aluminium frame is the fastest in the aluminium frame range from Meybo. Light, responsive, stable and stiff, it offers all the advantages sought in one single product.

Its geometry has been specifically designed for championship and world cup tracks, providing a perfect balance between maneuverability and stability at very high speeds.

For the 2025 model, the Meybo HSX AL retains the same features as the 2024 model. Regarding braking, this frame is only compatible with the "Flat-mount" caliper. This means that the brake caliper is directly fixed to the rear dropout of the frame. For an optimal finish, two fixing screws go through the rear dropout of the frame to hold the brake caliper in place. This setup only works with 120 mm discs; the frame is not compatible with 140 mm discs. The frame comes with 1, 2, and 4 mm spacers to align your disc if you're not using a specific HSX hub.

Depending on the sizes, the bottom bracket standard changes. For the Expert, Expert XL, and Pro 21 sizes, it’s the BB86 standard (Ø41mm). For larger sizes, there is a Pressfit BB386 (Ø46mm). This ensures better stiffness and limits torsion while pedalling.

To maintain a constant rear chainstay length regardless of the gearing used, this frame is supplied with a 15 mm thru-axle. This significantly increases the rigidity of the rear part of the frame. This configuration requires a rear hub with a 15 mm axle. The axle itself is made from 7005 aluminium, fully CNC machined.

To maintain constant chain tension, Meybo has designed a chain tensioner that ensures optimal transmission no matter the chosen gearing. To optimise the chain tension adjustment with this tensioner, it is advisable to use a chain with half-links for more precise adjustment.

In summary, the HSX retains the same tubes as the 2024 model. It is made from very high-quality aluminium (6061-T6) with various thicknesses of hydroformed tubes to optimise weight without compromising strength. A new rear dropout is designed to accommodate a fixed thru-axle and a Flatmount disc brake.

Designed and intended for competition, whether at high speed on a world cup track or in first position on an indoor circuit, the HSX is a formidable racing weapon.

SPECIFICATIONS:

• Frame 100% aluminium 6061-T6
• Hydroformed tubes with various thicknesses
• Compatible only with "Flat-mount" hydraulic brakes
• Mounting only for 120mm discs.
• Supplied with 3 spacers (1, 2, 4mm) to align the brake disc
• Bottom bracket BB86 or BB386 depending on sizes - see chart below
• Seat post 25.4mm or 27.2mm depending on sizes - see chart below
• Option to install a crankset with a 24 or 30mm axle
• Chain tensioner Meybo integrated into the rear dropout
• We recommend using a "half-link" chain for transmission adjustment.
• Supplied with a fixed 15 mm thru-axle for the rear wheel - 7005 Aluminium (Fully CNC machined)

• : Micro, Mini, Junior, Expert, Expert XL, Pro 21, Pro 21.5, Pro 22, Pro 22.5, Pro 23, Cruiser Pro 22, Cruiser Pro 23,
• Top Tube Rider Area : -,-,-,500 mm, 525 mm, 535 mm, 545 mm, 557 mm, 570 mm, 581 mm, 564 mm,-,
• Down Tube : -,-,-,506 mm, 530 mm, 534 mm, 543 mm, 555 mm, 566 mm, 579 mm, 577 mm,-,
• Rear Chainstay Length : -,-,-,340 mm, 345 mm, 369 mm, 380 mm, 386 mm, 393 mm, 399 mm, 393 mm,-,
• Head Angle : -,-,-,73.5, 73.5, 74.0, 74.0, 74.0, 74.0, 74.3, 74.0,-,
• Seat Tube Angle : -,-,-,71.0, 71.0, 71.0, 71.0, 71.0, 71.0, 71.0, 71.0,-,
• Head Tube Type : -,-,-,1 1/8", 1 1/8", Tapered 1 1/8" - 1.5", Tapered 1 1/8" - 1.5", Tapered 1 1/8" - 1.5", Tapered 1 1/8" - 1.5", Tapered 1 1/8" - 1.5", Tapered 1 1/8" - 1.5",-,
• Seat Post Diameter : -,-,-,25.4 mm, 25.4 mm, 27.2 mm, 27.2 mm, 27.2 mm, 27.2 mm, 27.2 mm, 27.2 mm,-,
• Rear Hub Standard : -,-,-,15 mm, 15 mm, 15 mm, 15 mm, 15 mm, 15 mm, 15 mm, 15 mm,-,
• Bottom Bracket : -,-,-,BB86 ⍉41, BB86 ⍉41, BB86 ⍉41, BB386 EVO ⍉46, BB386 EVO ⍉46, BB386 EVO ⍉46, BB386 EVO ⍉46, BB386 EVO ⍉46,-,
• Disc Brake Caliper Type : -,-,-,Flatmount, Flatmount, Flatmount, Flatmount, Flatmount, Flatmount, Flatmount, Flatmount,-,
• Weight : -,-,-,-,-,-,-,-,-,-,-,-,
