Frame Holeshot 2025

FRAME MEYBO HOLESHOT 2025

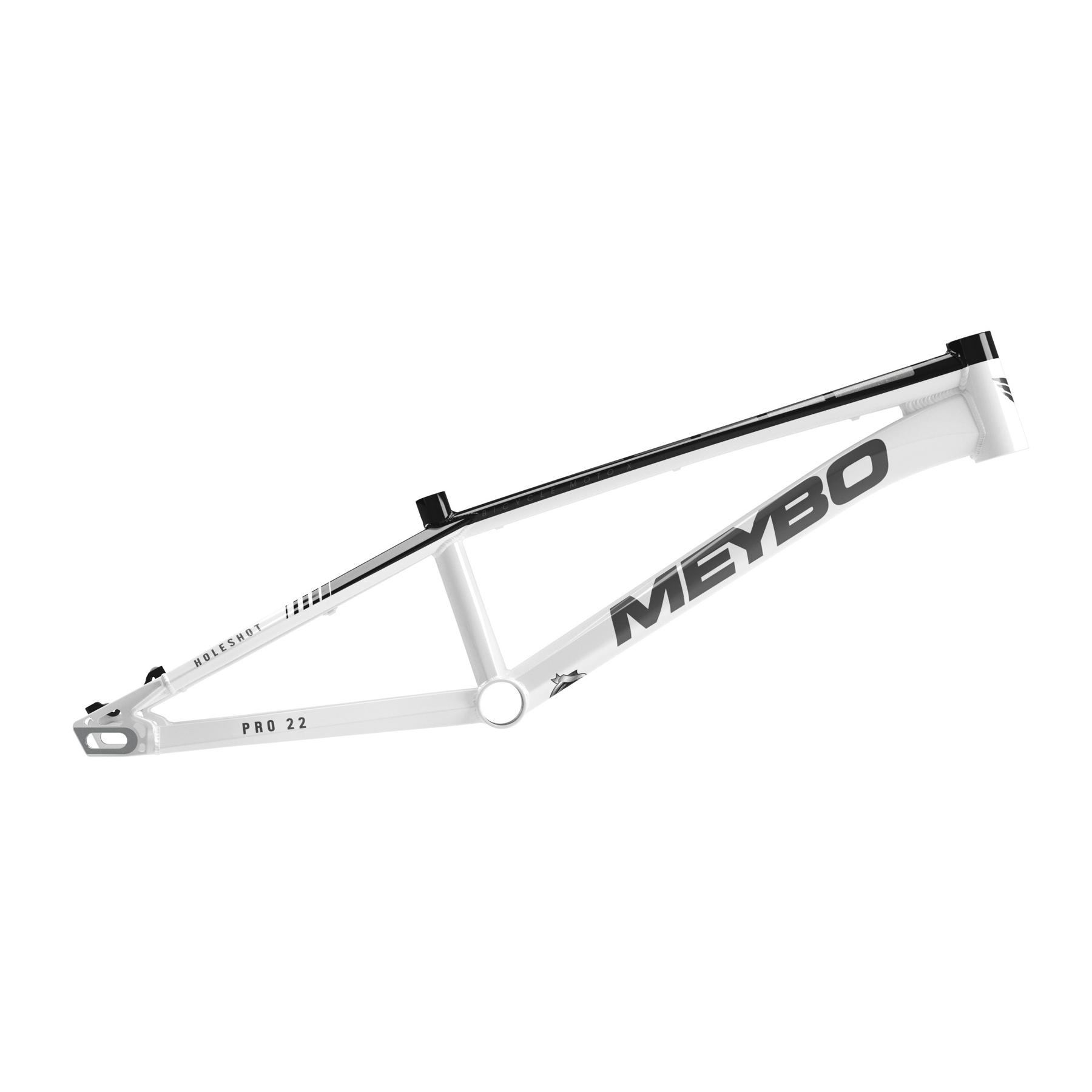

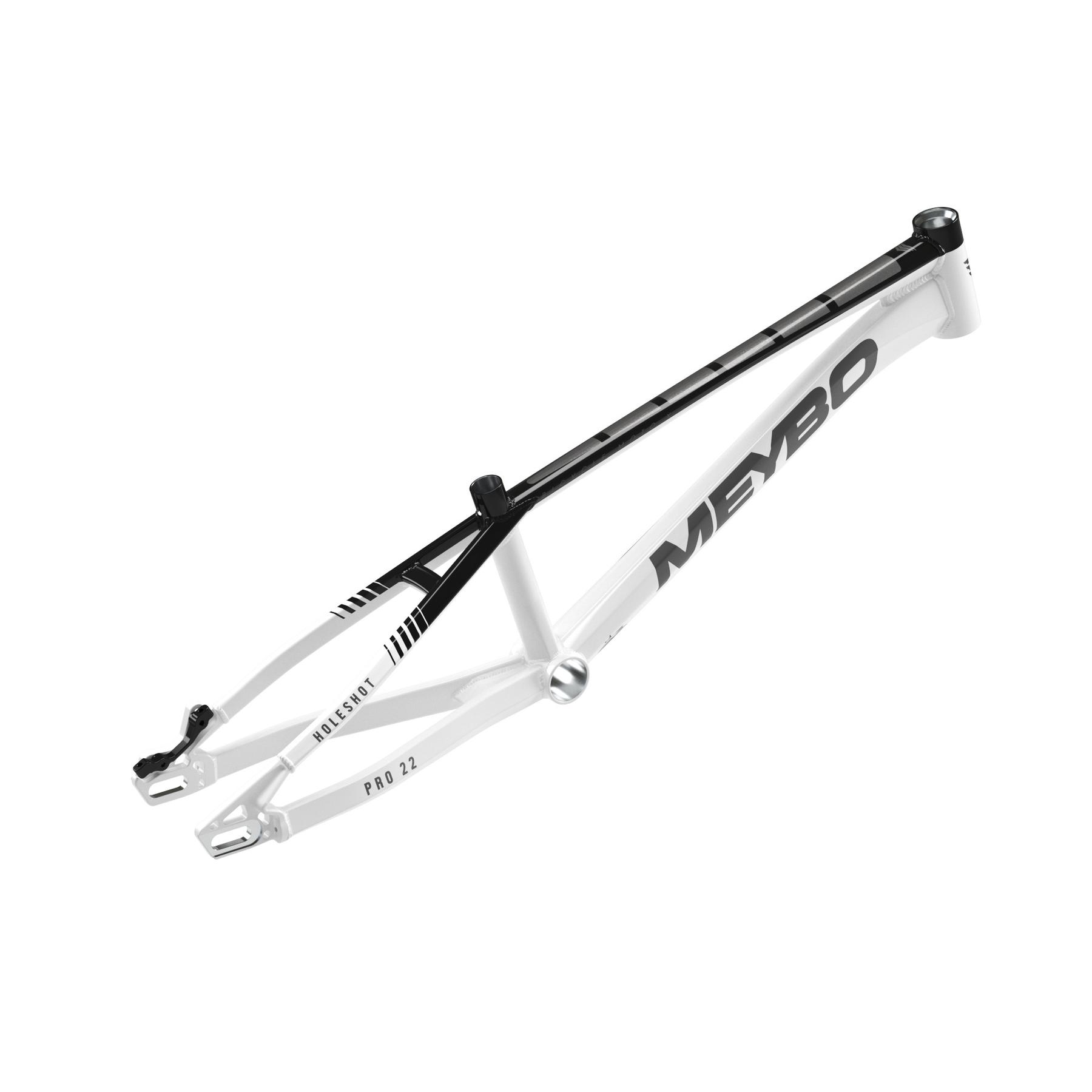

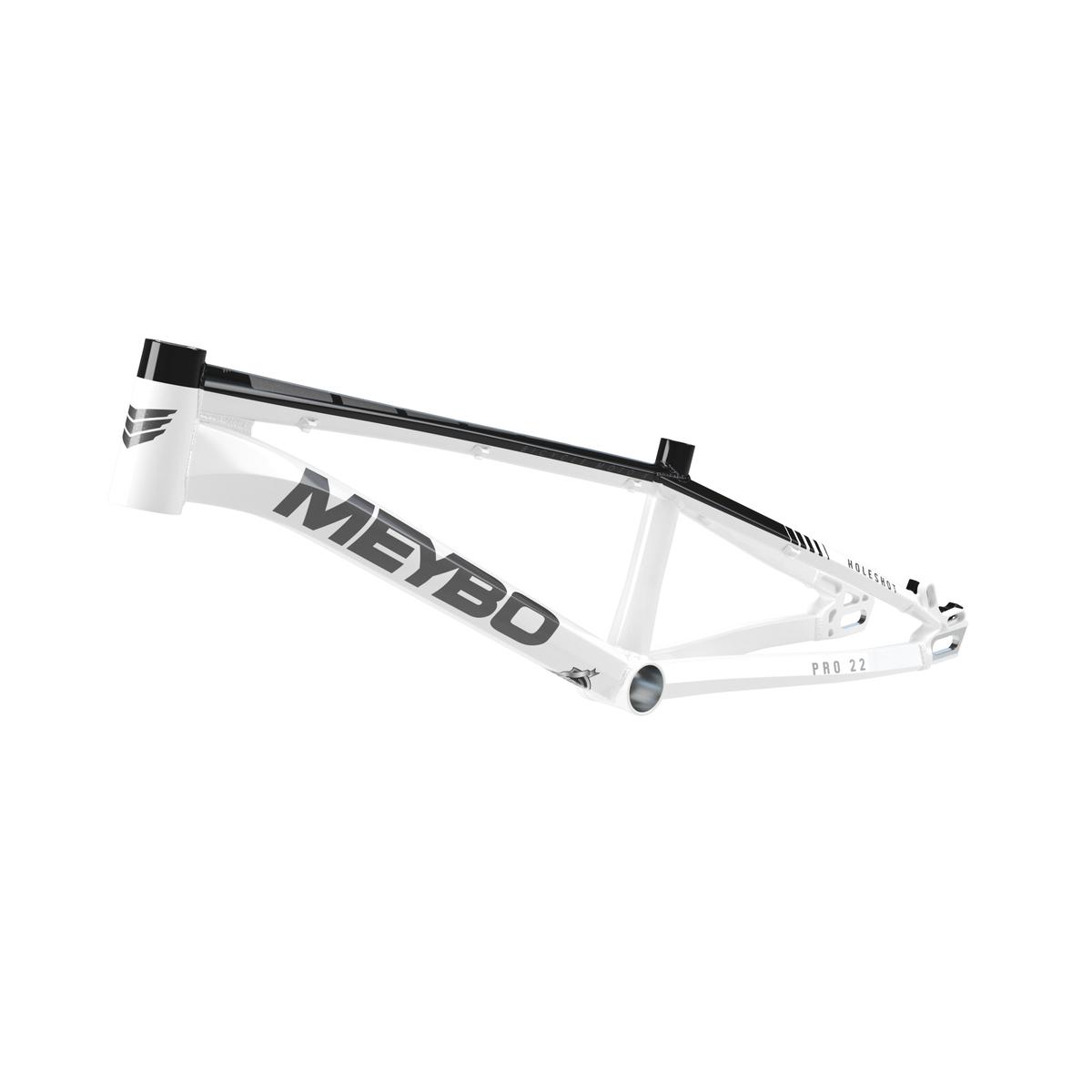

Discover the Meybo Holeshot, a dynamic and high-performance BMX Race frame. It is designed for experienced riders.

The Holeshot is the favourite frame of many Elite riders. It has been tested and approved on tracks all around the world.

The Holeshot is made from 6061-T6 aluminium, featuring hydroformed tubes of variable thickness ensuring stiffness and lightness. It has a geometry that allows for stability at high speeds while remaining responsive on technical sections. The Holeshot has been designed to fit all body types and is also available in smaller sizes.

The 2025 range maintains the same features as the 2024/2024.5 range. In terms of braking, this frame is only compatible with Postmount (PM) standard calipers. This means that the brake caliper is attached to an IS to PM adapter rather than being mounted directly onto the frame. For smaller sizes, a disc brake mount designed for 10 mm open ends is included with the frame purchase. For larger sizes, a plate kit for 10/15mm is provided with the frame.

The bottom bracket standard varies depending on the sizes. For sizes ranging from Mini to Expert XL, it is a EURO standard, also known as Euro/BSA or EB24. For larger sizes, a Pressfit BB30 standard is used, providing better stiffness and reducing torsion during pedalling.

In summary, the Holeshot model is a high-performance frame used by many professional-level riders. Available in different sizes, from Mini to Cruiser, a quick and track-adapted assembly can be done from the smallest sizes.

SPECIFICATIONS:

• Frame 100% aluminium 6061-T6
• Hydroformed tubes with multiple thicknesses
• Head Tube: 1" (Mini, Junior) | 1"-1/8 (Exp & Exp XL) | 1"-1/8 ; 1.5" tapered (Pro and Cruiser sizes)
• Compatible with Postmount hydraulic brakes
• Bottom bracket BB30 or EURO depending on sizes - see the table below
• Chain tensioners Meybo included with the frame (valid for all sizes)

• • Frame sizes: Mini, Junior, Expert, Expert XL, Pro 21, Pro 21.5, Pro 22, Pro 22.5, Pro 23, Cruiser 22, Cruiser 23
  • Top Tube (.) Rider Area (mm): 17.68" 1,449mm, 18.70" 1,475mm, 19.69" 1,500mm, 20.67" 1,525mm, 21" 1,535mm, 21.5" 1,545mm, 22.1" 557mm, 22.5" 570mm, 23" 1,581mm, 22.20" 564mm, 23.1" 590mm
  • Down Tube: 18.07" (459mm), 19.06" (484mm), 19.92" (506mm), 20.87" (530mm), 21.02" 1,534mm, 21.38.1 543mm, 21.85" (555mm), 22.28" (566mm), 22.80" (579mm), 22.72" (577mm), 23.62" (600mm)
  • Rear Bases: 12.99" (330mm), 13.39" (340mm), 13.39" (340mm), 13.58" (350mm), 14.53" (365mm), 14.96" (373mm), 15.20" (386mm), 15.47" (393mm), 15.63" (399mm), 15.47" (393mm), 15.86" (403mm)
  • Head Tube Angle: 73°, 73.5°, 73.5°, 73.5°, 74°, 74°, 74°, 74°, 74.3°, 74°, 74.3°
  • Seat Tube Angle: 70°, 71°, 70°, 71°, 71°, 71°, 71°, 71°, 71°, 71°, 70.5°
  • Integrated Headset IS: 0-1/8, 1.0-1/8, Tapered 1-1/8 - 1.5", Tapered 1-1/8 - 1.5", Tapered 1-1/8 - 1.5", Tapered 1-1/8 - 1.5", Tapered 1-1/8 - 1.5", Tapered 1-1/8 - 1.5", Tapered 1-1/8 - 1.5"
  • Seat Post Diameter: 22.2mm, 22.2mm, 25.4mm, 25.4mm, 27.2mm, 27.2mm, 27.2mm, 27.2mm, 27.2mm, 27.2mm
  • Brake Mount: 10mm, 10mm, 10mm, 10mm, 15mm, 15mm, 15mm, 15mm, 15mm, 15mm
  • Bottom Bracket: EURO (BSA), EURO (BSA), EURO (BSA), EURO (BSA), BB30 - Pressfit, BB30 - Pressfit, BB30 - Pressfit, BB30 - Pressfit, BB30 - Pressfit, BB30 - Pressfit
  • Disc Brake Mount: Postmount, Postmount, Postmount, Postmount, Postmount, Postmount, Postmount, Postmount, Postmount, Postmount, Postmount
  • Weight (g): 1085, 1135, 1270, 1287, 1508, 1589, 1605, 1611, 1629, 1695, 1706
