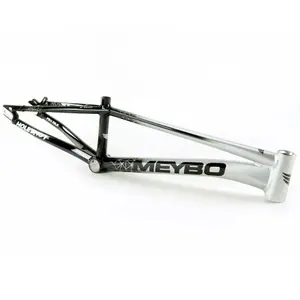

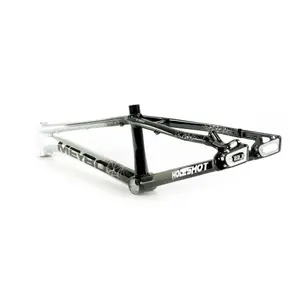

Meybo Frame Holeshot 2024

FRAME MEYBO HOLESHOT 2024

Discover the Meybo Holeshot, a dynamic, high-performance BMX Race frame. For experienced riders.

The Holeshot is the favorite frame of many Elite riders. It has been tested and approved on tracks all over the world.

The Holeshot is made of 6061-T6 aluminum, with hydroformed tubes of variable thickness to guarantee rigidity and lightness. Its geometry makes it stable at high speeds and responsive on technical sections. The Holeshot has been designed to fit all body shapes, and is also available in a smaller size.

This year, Holeshot 2024 has a new disc brake mounting configuration. It's an IS to PM type. Requiring a stretch compatible Postmount, the IS to PM adapter and Postmount caliper bracket are supplied with the frame at the time of purchase. In this configuration, the bracket is not directly attached to the frame.

The bottom bracket standard varies according to size, as does the diameter of the steering column. We invite you to consult the table below, where you'll find the specifications for each frame size.

For the 2024 model, there are several important specifications to bear in mind:

As far as braking is concerned, this frame is only compatible with standard Postmount (PM) calipers. This means that the brake caliper is attached to a disc brake bracket and not directly to the frame. For smaller sizes, a disc brake bracket for open 10 mm brackets is included with the frame. For larger sizes, an adaptor for 15 mm axles is supplied with the frame.

Bottom bracket standards vary according to size. For sizes from Mini to Expert XL, the standard is EURO, also known as nom, BSA or EB24. For larger sizes, a Pressfit BB30 standard is used, offering greater rigidity and limiting torsion during pedaling.

In short, the Holeshot is a high-performance frame used by many professional riders. Available in a range of sizes, from Mini to Cruiser, it's possible to build rapide and track-suitable from the smallest sizes upwards.

SPECIFICATIONS :

• 100% 6061-T6 aluminum frame
• Hydroformed tubes in several thicknesses
• Steering column: 1" (Mini, Junior) | 1"-1/8 (Exp & Exp XL) | 1"-1/8 ; 1,5" tapered (sizes Pro and Cruiser)
• Compatible with "Postmount" hydraulic brakes
