Motorcycle led headlight Hd-Style Type 1 7"

HIGHSIDER

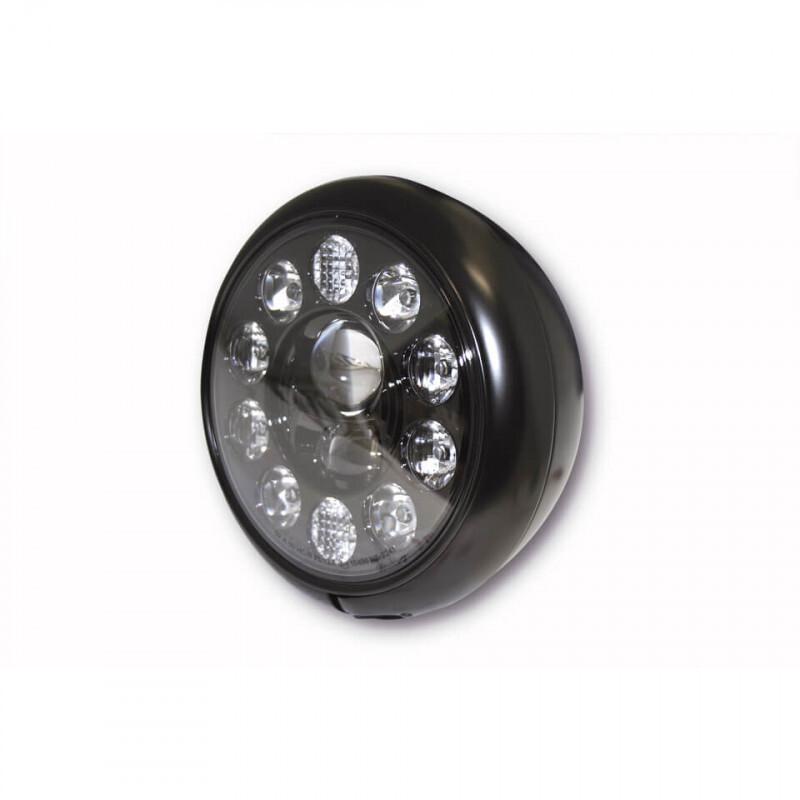

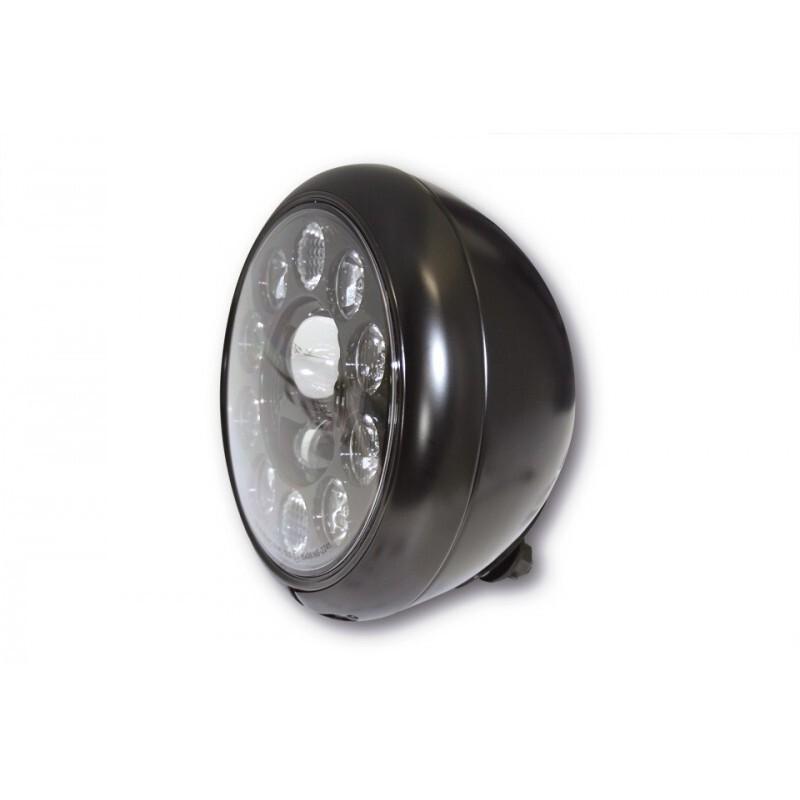

LED headlight HIGHSIDER 7 inch HD-STYLE TYPE 1 for bottom mounting

Elegant, innovative Power LED headlight in purist design with position light function and round glass transparent. The oval metal body is chrome-plated and features a chrome-plated asymmetrical insert - legal for right-hand traffic only - or a black body with a black insert. E-approved.

Pure joie - give your bike an unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlamp series make it a point highlight in every case!

Dimensions:

Housing diameter: 220 mm

Headlight insert diameter: 178 mm

Depth: 155 mm

Distance between mounting holes on bracket (middle - middle): 65 mm

Power consumption at 12.5 volts DC :

low beam: 1.9 amps (approx. 23.75 watts).

12 volts 1069 lumens.

Only the two interior ellipsoidal inserts light up.

High beam: 1.4 amps (approx. 17.5 watts).

12 volts 1100 lumens

Only the outer LED circle lights up. All LEDs light up when headlamp flasher is activated.

Connections on the reflector in the headlight housing:

• Black cable = ground (-)


• Blue cable = low beam (+)


• Red cable = high beam (+)

2 additional cables for position light:

• Red cable = position light (+)


• Black cable = ground (-) )

Scope of delivery: 1 piece with counter-connector (plug) with 210 mm cable, for H4 halogen bulbs, connections:

• Green cable = ground (-)


• Blue cable = high beam (+)


• White cable = low beam (+)

Remarks :

Asymmetrical use - approved for right-hand traffic only.
