Led headlight HD-style 7"

HD-STYLE LED VOYAGE headlamp, 7-inch, metal housing with insert, clear lens, round, bottom-mounted, E-mark. Available in various colors.

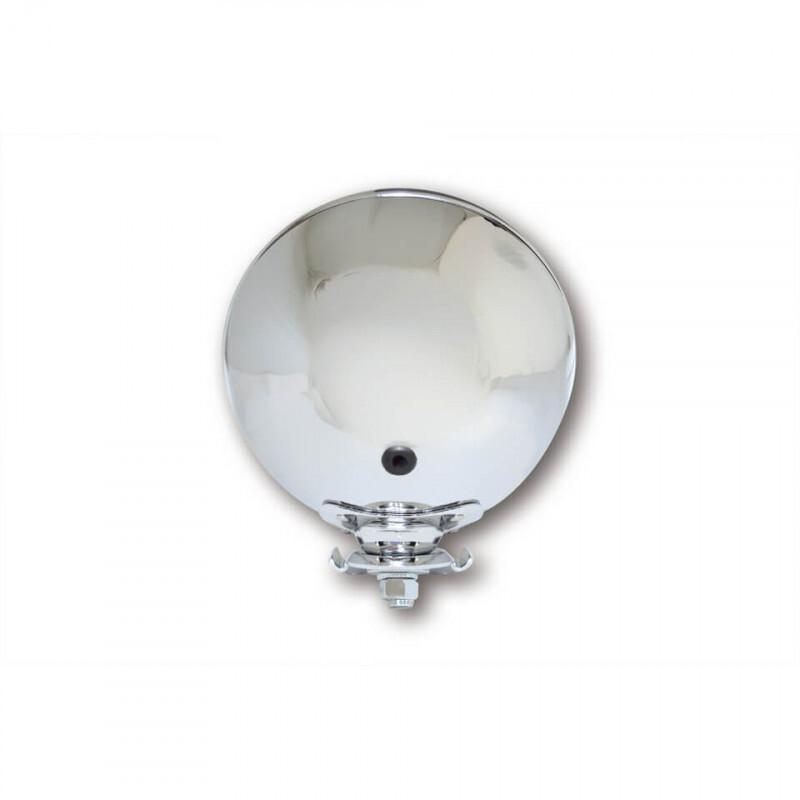

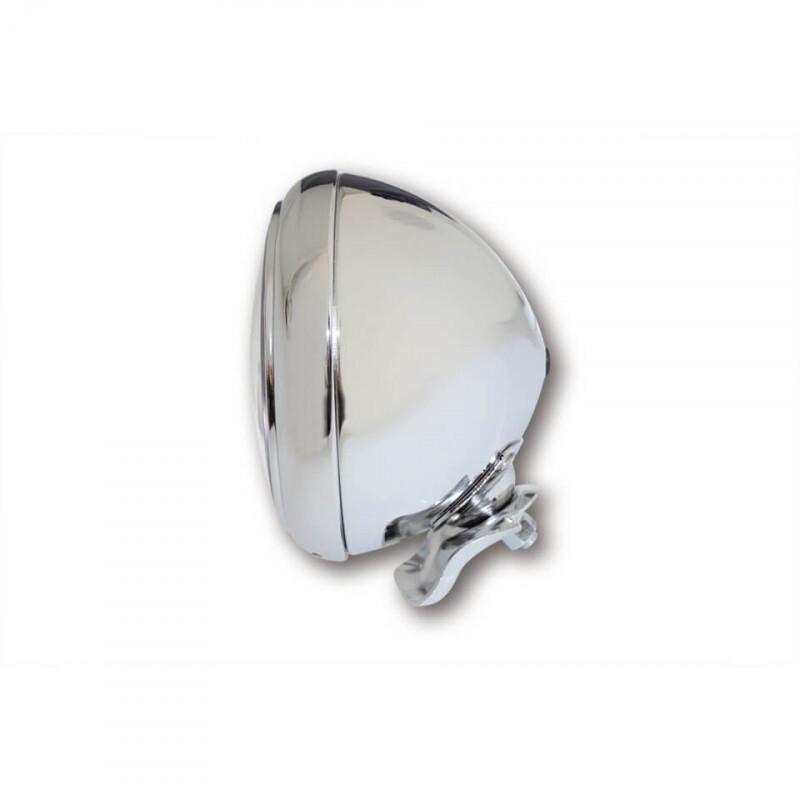

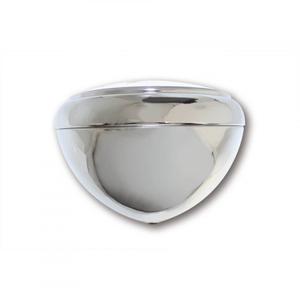

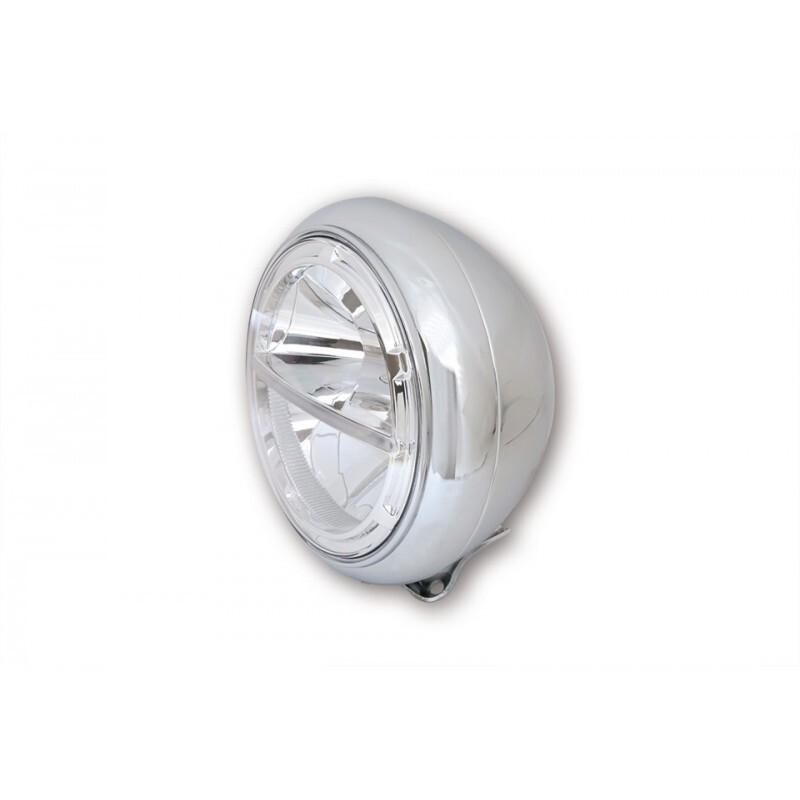

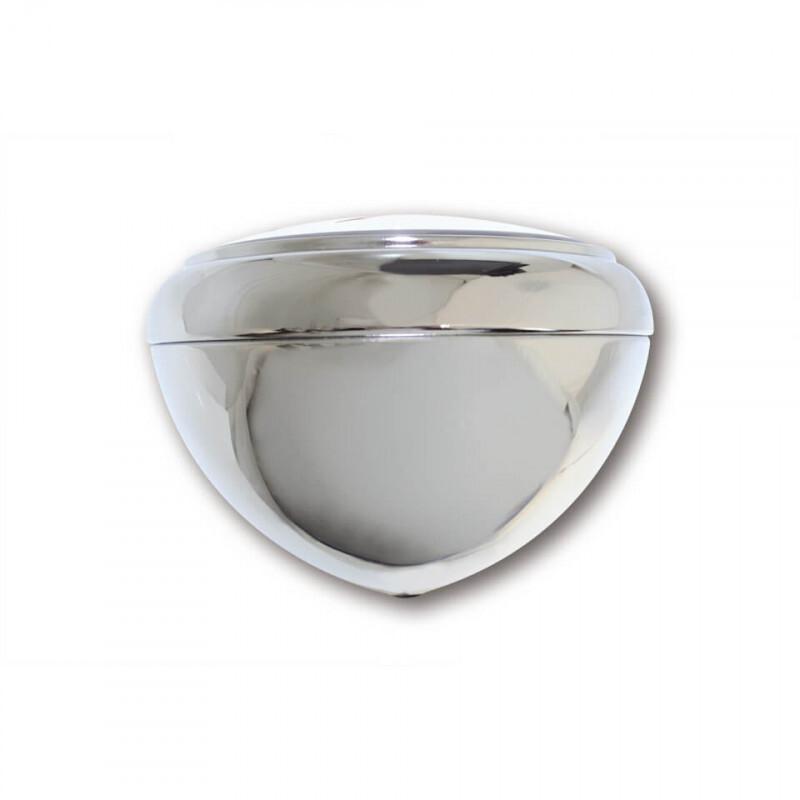

LED headlight HIGHSIDER 7 inch VOYAGE HD-STYLE for bottom mounting

Innovative Power LED headlight with purist design and position light function. The oval metal housing is painted black or chrome, the insert is chrome-plated. The LED technology and reflector used produce a symmetrical, brilliant light and ensure that autres road users get the best possible view of motorcyclists, E-approved.

Our highlights - give your bike an unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlight series make it a point highlight in every case!

Housing diameter: 220 mm
Headlight insert diameter: 178 mm
Depth: 155 mm
Distance between mounting holes on bracket (middle - middle): 65 mm

Power consumption at 12.5 volts:
Low beam: 1.4 amps (approx. 17.5 watts), approx. 1170 lumens.
High beam: 1.5 amps (approx. 18.5 watts), approx. 1200 lumens.

Connections, 3-pin combi plug:
Black cable = ground (-)
White cable = low beam (+)
Yellow cable = high beam (+)
Additional red cable = parking light (+)
Scope of delivery: 1 piece

Notes:
Symmetrical reflector - also approved for left-hand traffic.
Spare insert: Ref. 226-160
