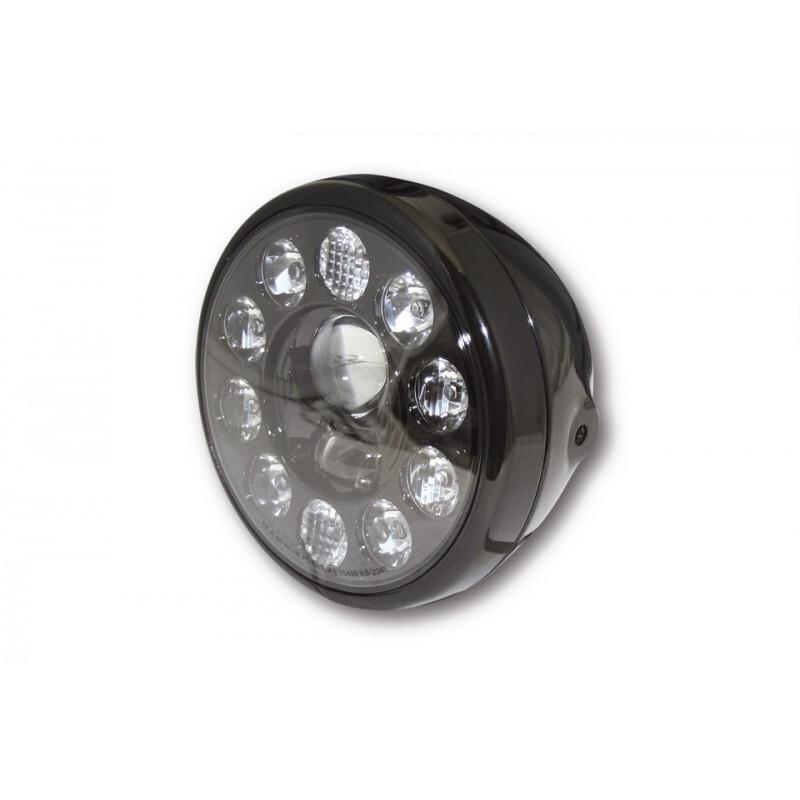

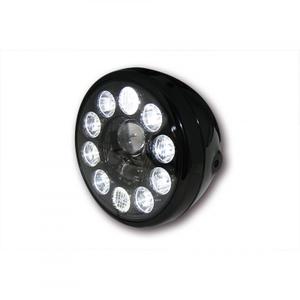

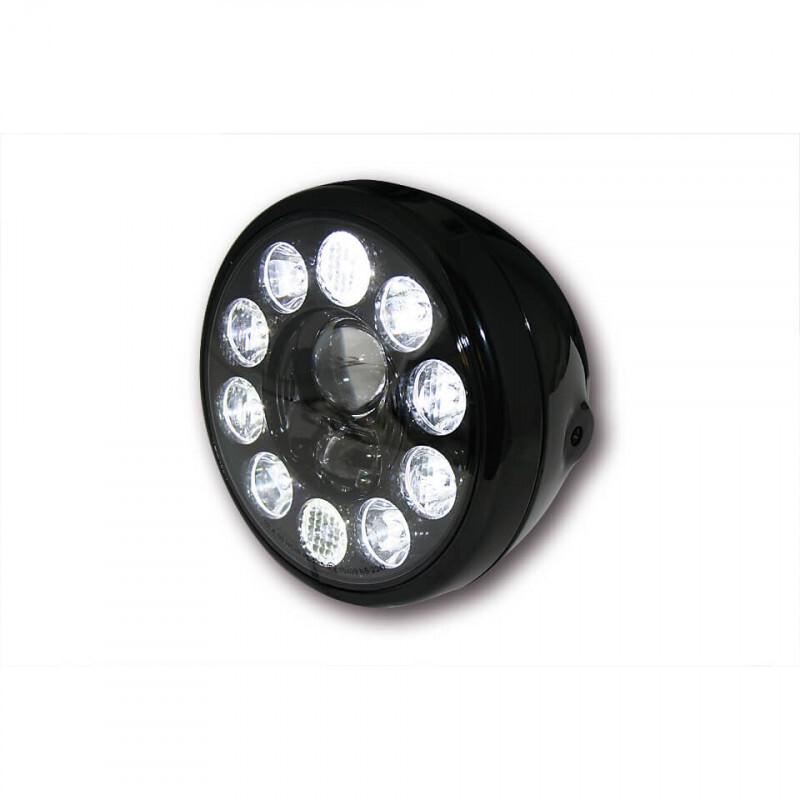

Motorcycle led headlight Reno 7"

RENO TYPE 1 7-inch LED headlight, high-gloss black metal housing with black insert, round, side-mounted, E-approved

HIGHSIDER

LED headlight HIGHSIDER 7 inch RENO TYPE 1 for side mounting

Innovative Power LED headlight with position light and round glass transparent. The metal housing has a high-gloss black finish and an asymmetrical chrome insert - approved for right-hand traffic only - E-approved.

Our highlights - give your bike an unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlamp series make it a point highlight in every case!

• Headlight dimensions: Housing diameter: 200 mm


• Headlight insert diameter: 178 mm


• Depth: 160 mm


• Distance between mounting holes (center - center): 170 mm


• Distance between mounting hole (center) and end of housing: approx. 90 mm


• Mounting: on side with M8 threaded bolts

Technical specifications

• Power consumption at 12.5 volts DC :


• low beam: only 1.9 amps (approx. 23.75 watts).


• 12 volts 1069 lumens


• Only the two interior ellipsoidal inserts light up.


• High beam: only 1.4 amps (approx. 17.5 watts).


• 12 volts 1100 lumens

Only the outer LED circle lights up. All LEDs light up when headlamp flash is activated.

Connections on the reflector in the headlamp housing:

• black cable = ground (-)


• red cable = high beam (+)


• blue cable = low beam (+)

2 additional cables for position light: black = ground (-), red = position light (+)

Scope of delivery: 1 piece with counter-connector (plug) with 210 mm cable, for H4 halogen bulbs, connections :

• Green cable = ground (-)


• Blue cable = high beam (+)


• White cable = low beam (+)

Notes

Asymmetrical retro-reflector - approved for right-hand traffic only

Optional replacement insert

black : Ref. 226-011
