Motorcycle led headlight Reno Type 1 7"

RENO TYPE 1 7-inch LED headlight, metal housing with insert, clear glass, round, side-mounted, E-approved. Available in various colors.

HIGHSIDER

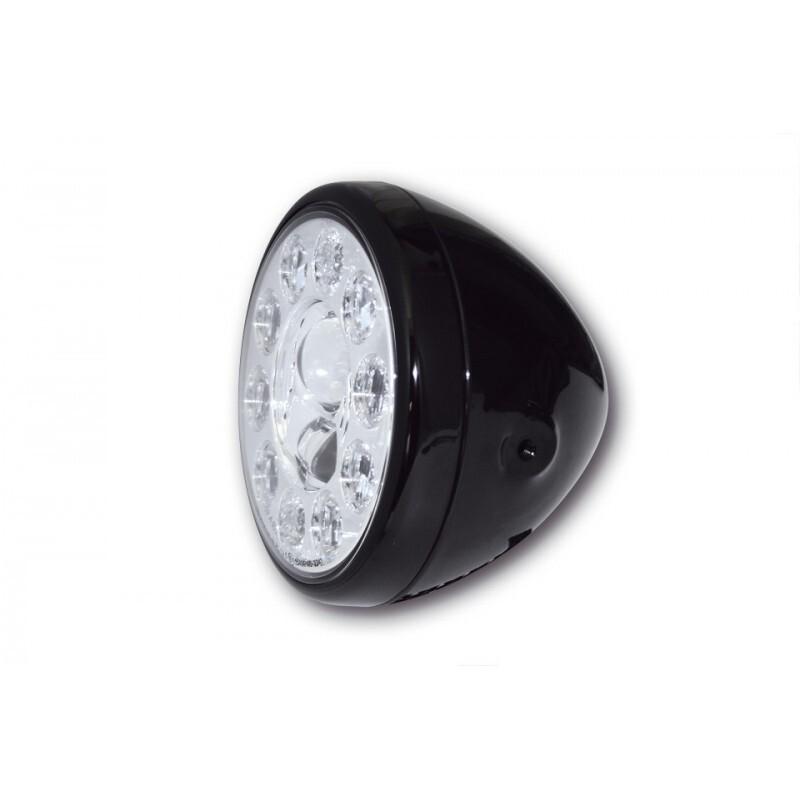

LED headlight HIGHSIDER 7 inch RENO TYPE 1 for side mounting

Innovative Power LED headlight with position light and round glass transparent. The metal housing is painted gloss black or chrome and features an asymmetrical chrome insert - approved for right-hand traffic only - marked E.

Our highlights - give your bike an unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlamp series make it a point highlight in every case!

• Headlight dimensions: Housing diameter: 200 mm


• Headlight insert diameter: 178 mm


• Housing depth: 160 mm


• Distance between mounting holes (center - center): 170 mm


• Distance between mounting hole (center) and housing


• Technical specifications


• Power consumption at 12.5 volts DC :


• Low beam: only 1.9 amps (approx. 23.75 watts).


• 12 volts 1069 lumens


• Only the two interior ellipsoidal inserts light up.


• High beam: only 1.4 amps (approx. 17.5 watts).


• 12 volts 1100 lumens

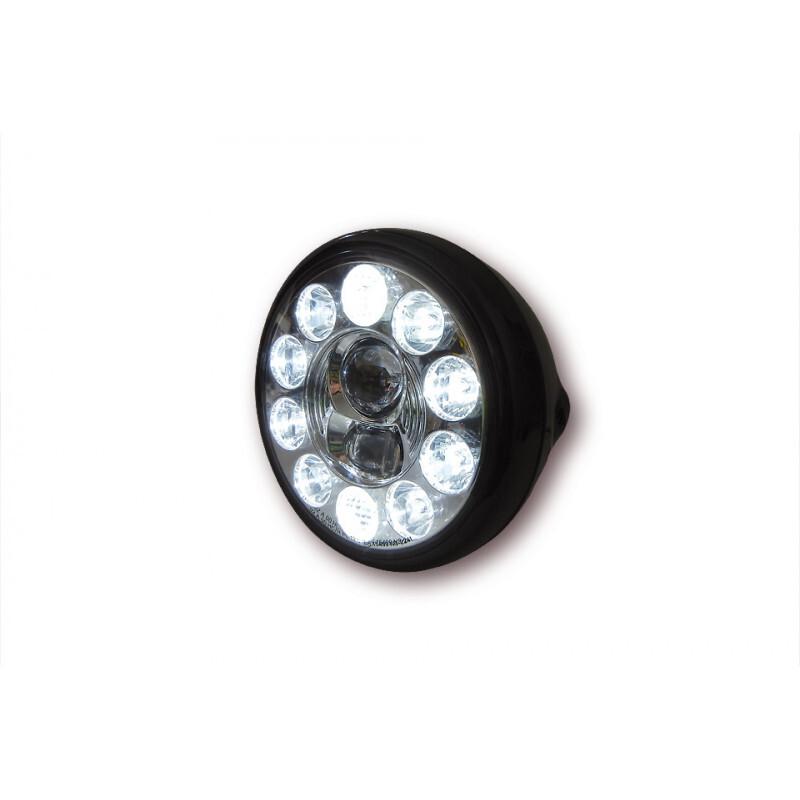

• Only the outer LED circle lights up. All LEDs light up when headlamp flash is activated.

Connections on the reflector in the headlamp housing:

• Black cable = ground (-)


• Red cable = high beam (+)


• Blue cable = low beam (+)


• 2 additional cables for position light: black = ground (-), red = position light (+)

Mating connector connections :

• Green wire = Ground (-)


• Blue wire = High beam (+)


• White wire = Low beam (+)

Scope of delivery: 1 piece with mating connector (plug) with 210 mm cable, for H4 halogen bulbs

Please note

asymmetrical retro-reflector - approved for right-hand traffic only
