Led headlight Atlanta

5 3/4-inch LED Headlamp ATLANTA HIGHSIDER 5 3/4-inch LED headlamp ATLANTA with parking light, metal housing, bottom mount, E-approved. Available in various colors. Headlight dimensions:Diameter: 145mm Depth: 65 mm (from mounting screw to rear housing)Depth: 135 mm

HIGHSIDER

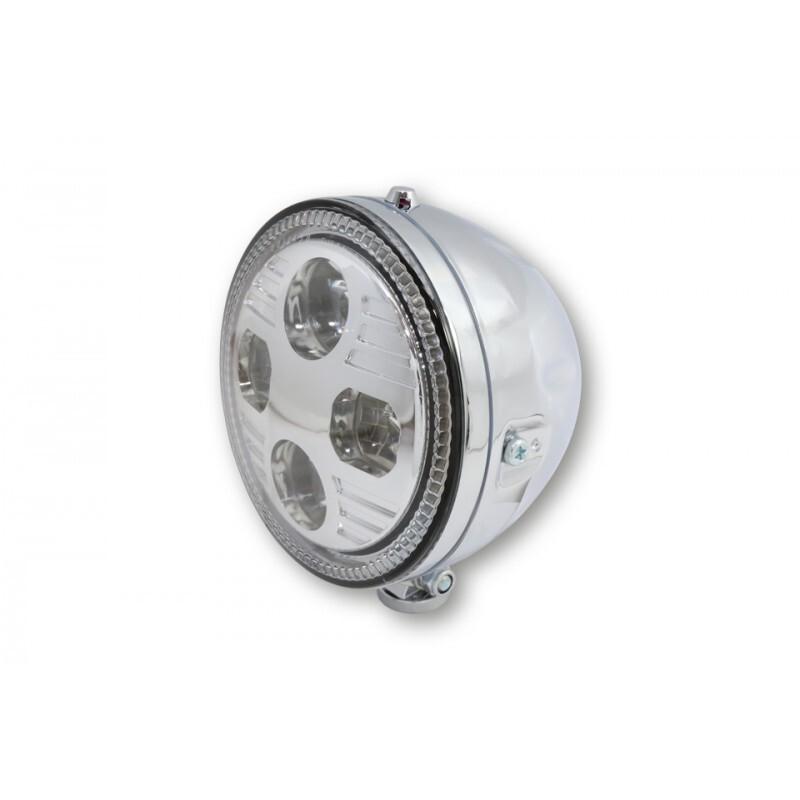

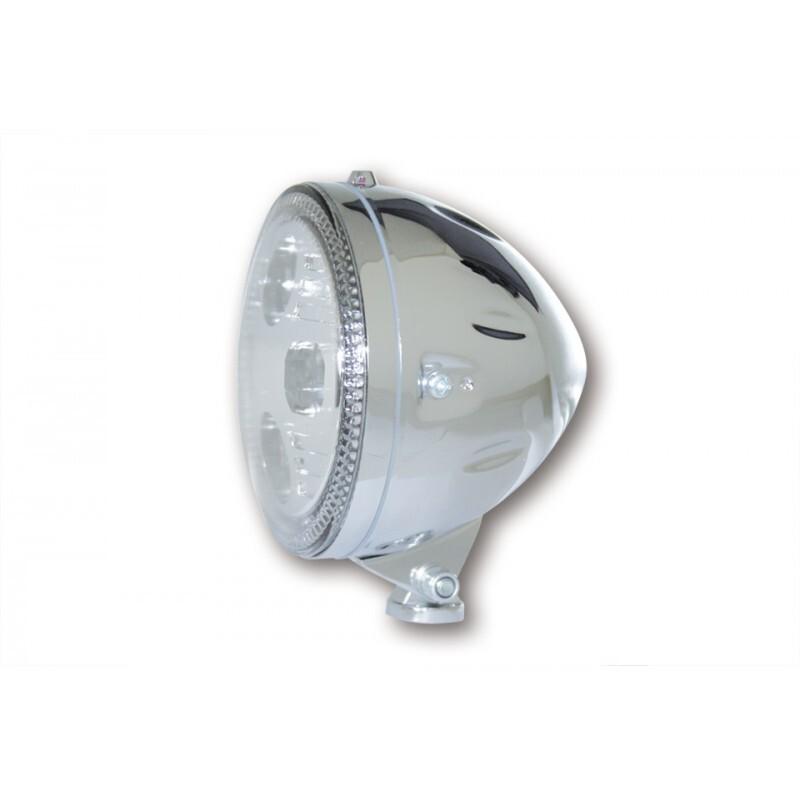

Headlamp HIGHSIDER 5 3/4 inch ATLANTA LED with bottom-mounted parking light

Innovation for your safety - the ATLANTA model is a headlamp with 4 high-power LEDs, packaged in a high-quality chrome-plated metal housing with a chrome-plated LED insert, or in a high-quality black metal housing with a black LED insert. LED technology for low and high beam creates symmetrical daylight-like light for optimum visibility, E-approved.

Pure joy: Give your bike a style like no other! The unusual design and perfect technology of the HIGHSIDER headlight series will make you a sensational highlight point.

Headlight dimensions:
Diameter: 145
mm Depth: 65 mm (from mounting screw to rear housing)
Depth: 135 mm

Control box dimensions:
Height: 74 mm
Width: 42 mm
Depth: 21 mm

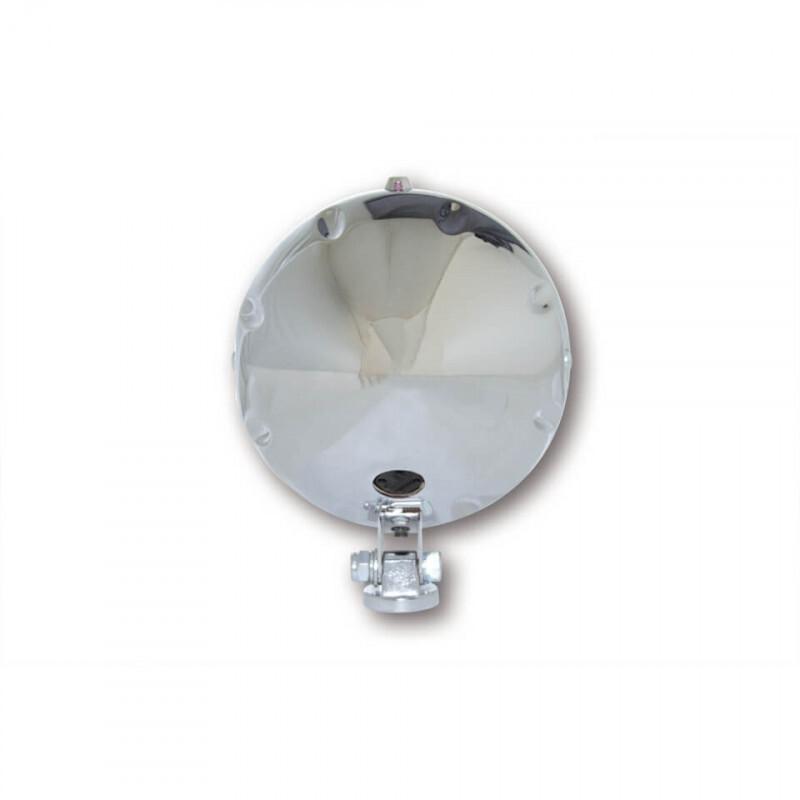

Mounting: bottom with M10 threaded bolt, length: 25 mm

Weight:
headlight: approx. 1200 g
control unit approx. 210 g

Technical data:
Power consumption dipped beam at 12.5 volts: 1.1 amps (13.75 watts)
Power consumption main beam at 12.5 volts: 2.3 amps (28.75 watts)
Luminous flux at 12 volts: main beam and dipped beam 1200 lumens each

Connections:
9-16 volts DC
Black = Ground
White wire = Low beam
Blue wire = High beam
Brown wire = Parking light

Scope of delivery: 1 piece
Note: Control box must be connected!
