Motorbike headlight Hd-Style Type 11

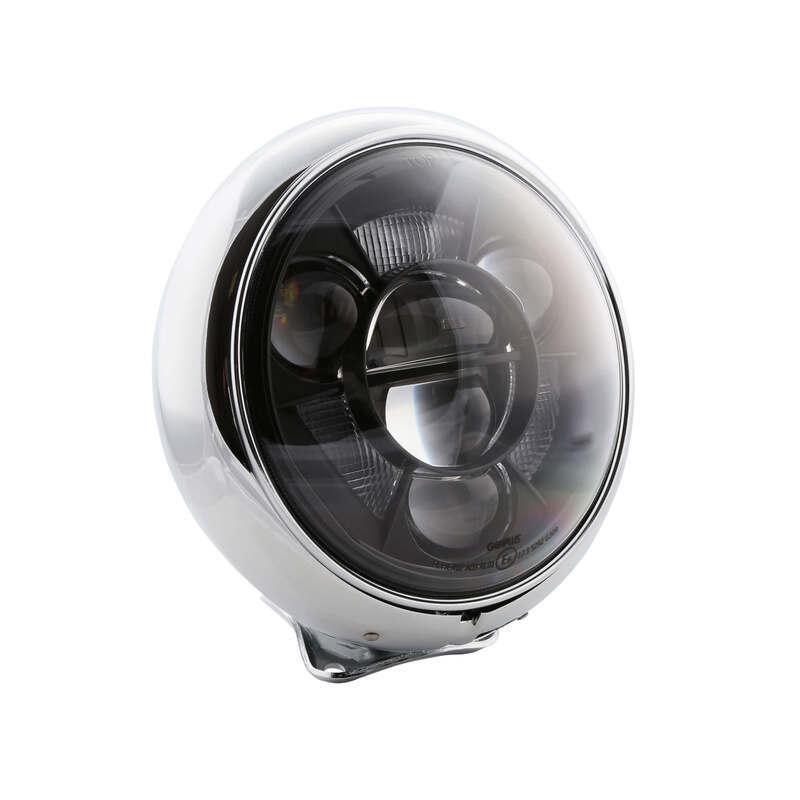

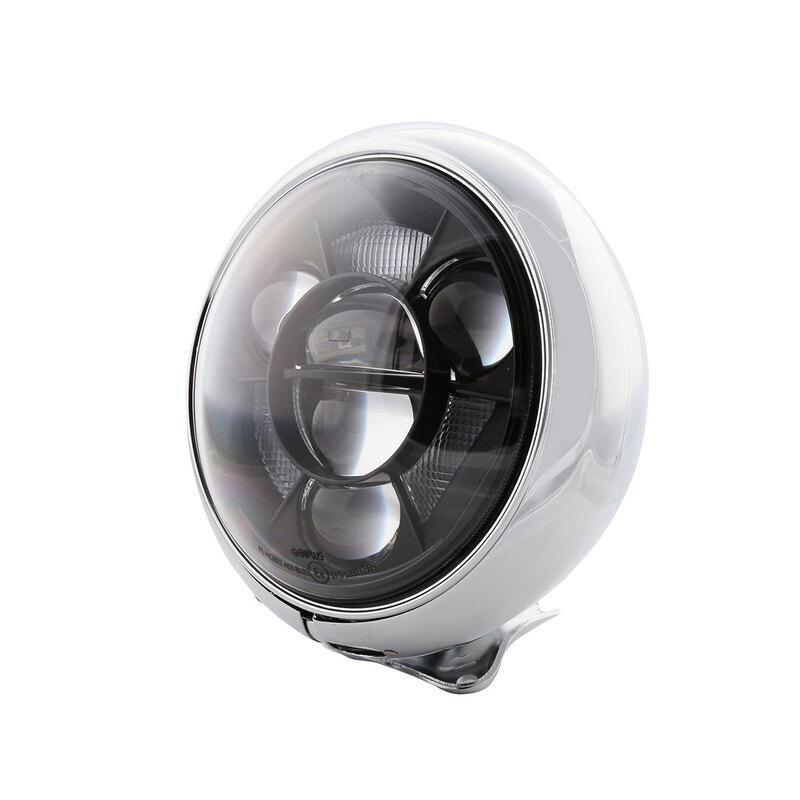

7-inch LED headlight HIGHSIDER HD-STYLE Type 11

Main beam, dipped beam, parking lights, and TFL (daytime running light) function.

Whether it's a replacement for better visibility or to give your motorbike a more appealing look, the HD-Style Type 11 headlight is an excellent choice. The projector is protected by a high-quality metal casing. The reflector emits an asymmetrical light beam - approved for right-hand traffic only.

Dimensions:
Housing diameter: 220 mm
Headlight insert diameter: 178 mm
Depth: 155 mm

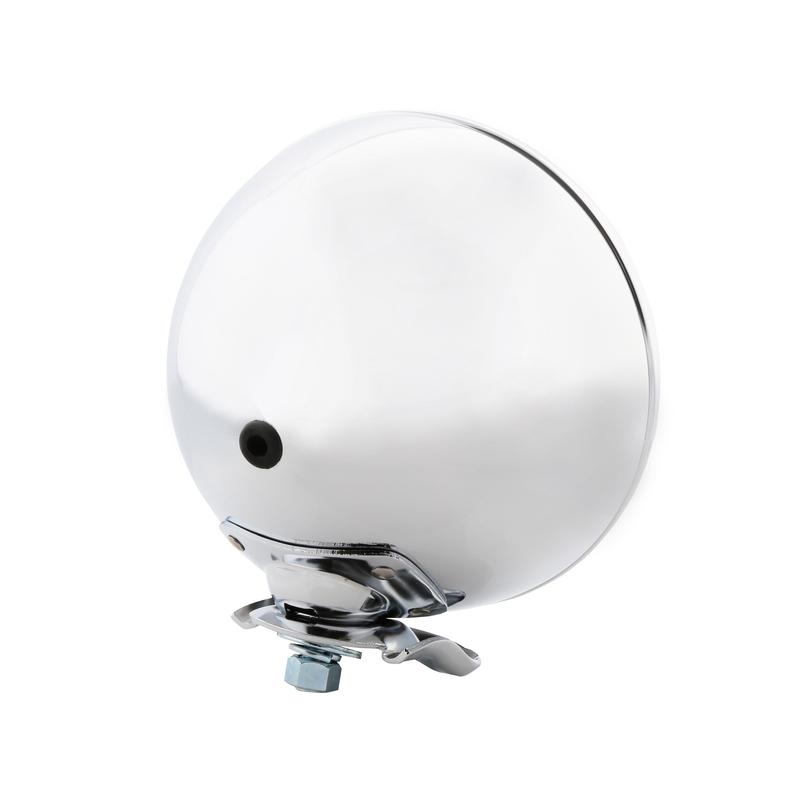

Mounting: bottom
Distance between mounting holes on the bracket (centre to centre): 65 mm

Connections:
Power input: 3-pin connector
Black wire = ground (-)
White wire = dipped beam (+)
Blue wire = main beam (+)

TFL:
Black wire = ground (-)
Brown wire = daytime running lights (+)
Grey wire = parking lights (+)

Sold individually
