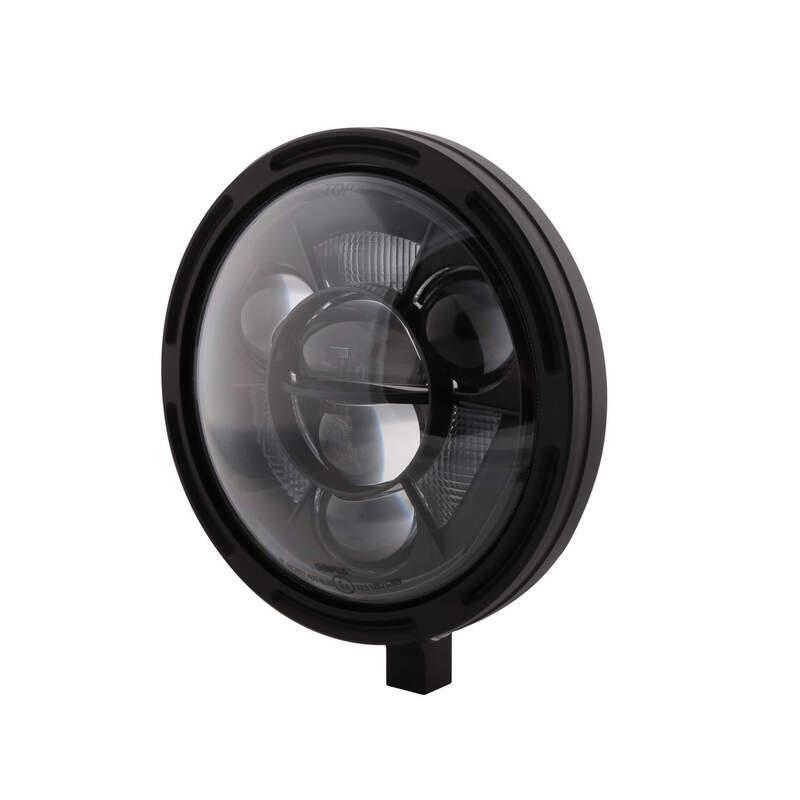

Motorcycle led front light bottom mount Frame-R1 type 11

LED headlamp HIGHSIDER FRAME-R1 TYPE 11 7 inch, E-approved

The Frame R1 headlamp makes it possible to install an LED light without a housing, for tight mounting and improved cooling.
If you're looking for a stylish, innovative headlamp, the FRAME-R1 LED main headlamp is an excellent choice.

Two different mounting systems are available for variable headlamp mounting:

• Side mounting, the conventional screw fitting on the side of the lamp holder.


• Bottom-mounted, mounting below the screw fitting on the triple clamp.

Side-mount brackets can be mounted in three positions, compensating for 32 mm installation depth and 46 mm width.

Features :

• 7" round headlight with CNC mounting ring and mounting kit


• Mounting WITHOUT headlamp housing


• Improves cooling


• Numerous installation options


• Flat installation


• Modern appearance, innovative styling


• Clear glass


• Black reflector


• The reflector emits an asymmetrical luminous flux, approved for right-hand traffic only.


• High beam, low beam, parking light and daytime running light function


• E-approved, no need for registration

Dimensions:
Diameter A = 170 mm
Diameter GA = 165 mm
Diameter I = 160 mm
T = 60 mm
R = 9 mm
Total depth of glass to cooling fins: 99.10 mm

Connections:
Power input : 3-pin connector
Black wire = ground (-)
White wire = low beam (+)
Blue wire = high beam (+)

TFL:
Black wire = ground (-)
Brown wire = daytime running lights (+)
Grey wire = parking lights (+)

Supplied individually.
