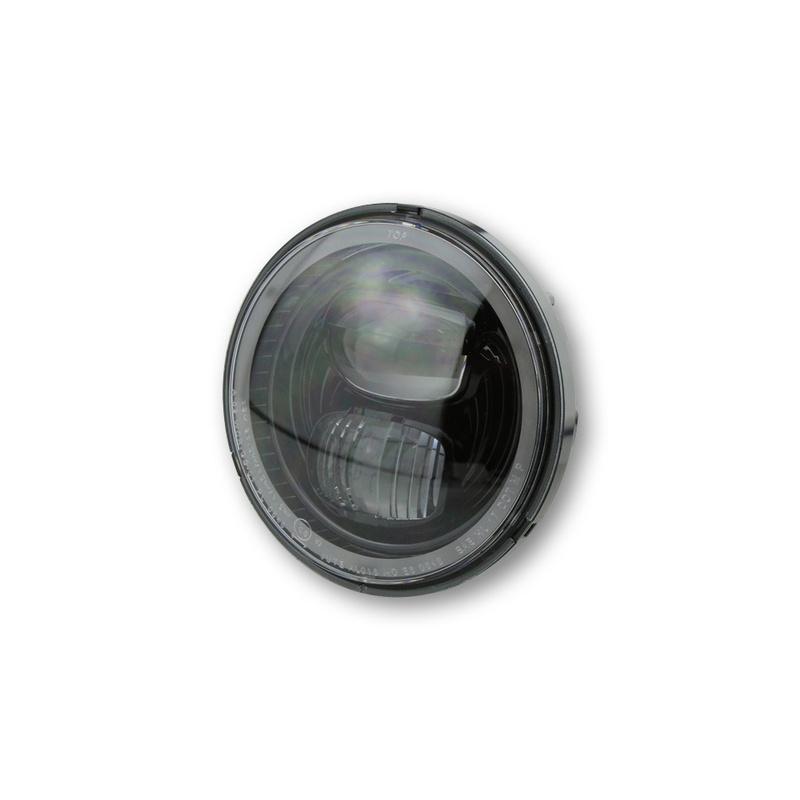

7-LED headlight insert

LED headlight insert HIGHSIDER type 7, E-approved.

This round insert features a high beam, a low beam and a parking light ring. The low beam is lit in the upper half of the insert, and when the high beam is on, both halves are lit.

Dimensions:

• Diameter A = 143 mm
• GA diameter = 133 mm
• Diameter I = 131 mm, T = 43 mm, R = 12 mm
• Cable length: 400 mm

Connections:

• White = low beam (+)
• Red = high beam (+)
• Black = ground (-)
• Green = parking light (+)

Scopeof delivery: 1 piece incl. 1x connector housing
