Headlight insert type 3 led

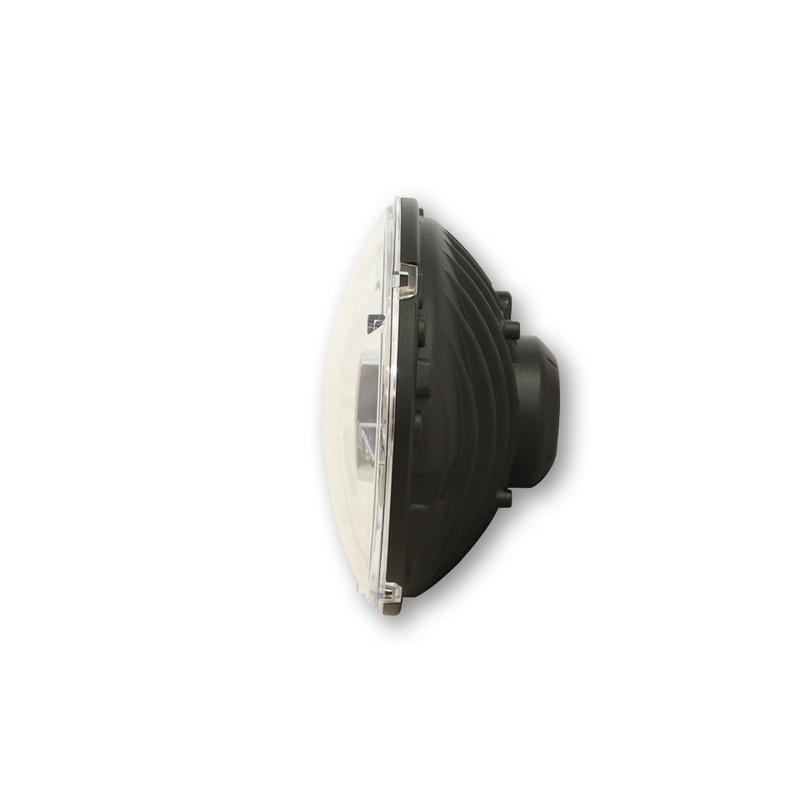

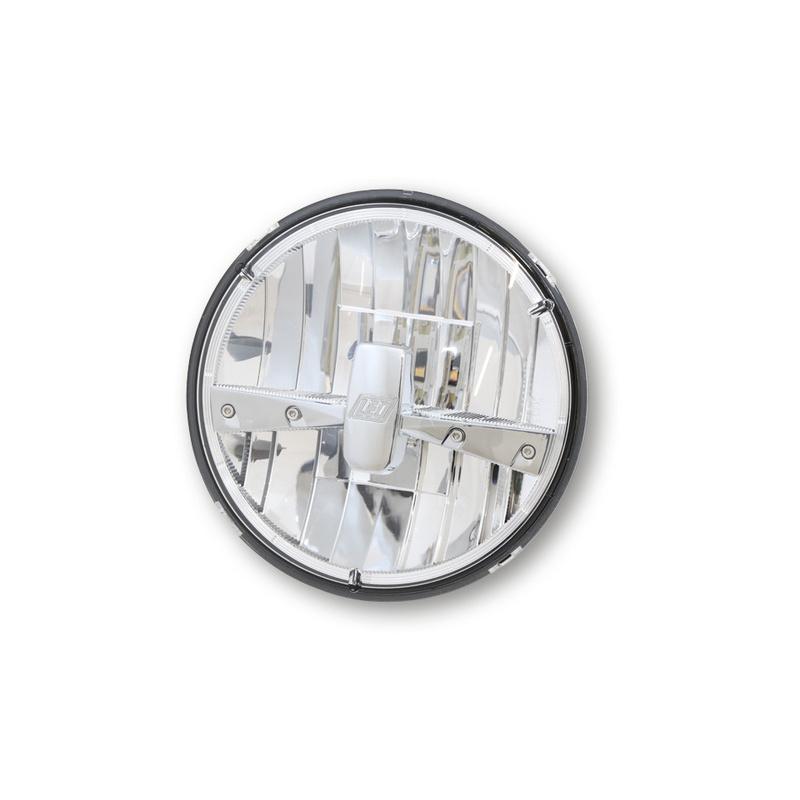

LED headlamp insert HIGHSIDER Type 3 round, high, low and position light, E-approved.

This round insert has high beam, low beam and position light functions and emits an asymmetrical luminous flux - only permitted for right-hand traffic.

Dimensions:

• Diameter A = 177 mm
• GA diameter = 168 mm
• Diameter I = 160 mm
• T = 61 mm
• R = 10mm

Connections:

• Black cable = ground (-)
• Red cable = low beam (+), power consumption: at 12 volts 18 watts approx. 1132 lumens.
• White cable = high beam (+), power consumption: at 12 volts 30 watts approx. 1770 lumens.
• Brown cable = position light (+), power consumption: at 12 volts 0.7 watts.

Supplied individually

• Asymmetrical application, approved for right-hand traffic only.
• Complete headlamp Art.-No. 1108616001 (223-146) and 1108615001 (223-148).
