Led headlight insert type 8

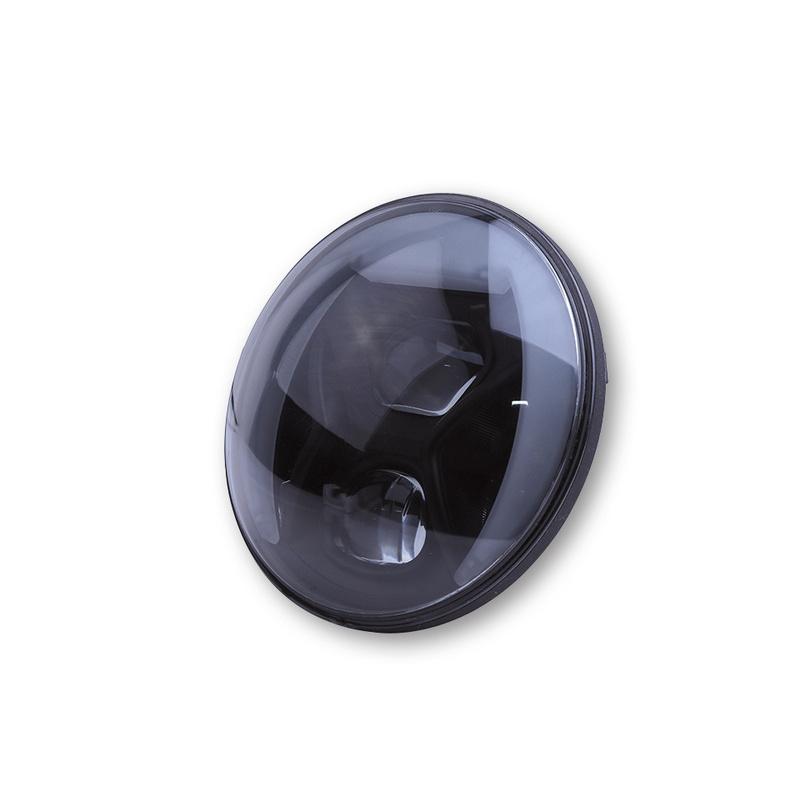

LED headlamp insert HIGHSIDER Type 8, 7 inch E-approved, with daytime running light, position light and cornering light

- See and be seen! - This is of paramount importance to motorcyclists.

The TYPE 8 LED daytime running light with position light is the ideal way to improve visibility during the day. Daytime running lights are switched on correctly on the vehicle without the need for a control box or additional switch, which complies with regulations and simplifies installation.

The HIGHSIDER LED headlamp with cornering light offers clear advantages over a conventional headlamp. When the motorcycle is leaning into a bend, additional lighting is activated. This makes it easier to see the bend and what's behind.

To switch from daytime to low beam:
Press the high beam/turn signal button briefly (approx. 1 second) and release as soon as the low beam is activated. The low beam is then permanently activated.

Dimensions :

• Diameter A = 177.8 mm
• GA diameter = 169 mm
• Diameter I = 166.5 mm
• T = 59 mm
• R = 10 mm
• Total depth from glass to cooling fins: 99.10 mm

Bottom mounting M8

Connections:

Power input: 3-pin connector :

• Red wire = low beam (+)
• White wire = high beam (+)
• Black wire = ground (-)

Separate wire (round connector) :

• Red wire = LED position light (+)

Supplied individually
