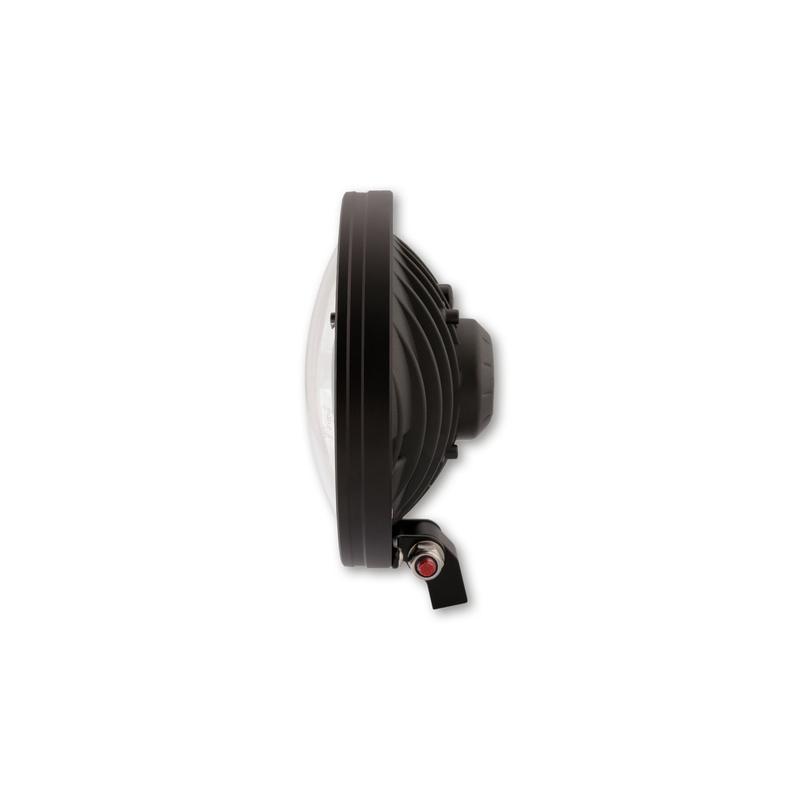

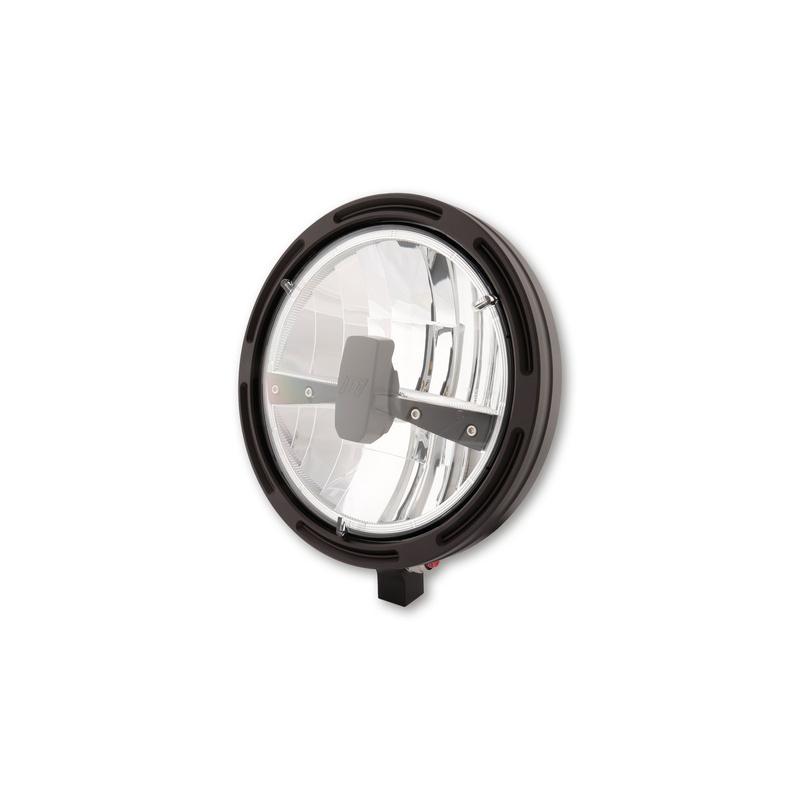

LED motorcycle headlight Frame-R1 Type 3 - 7"

LED headlight HIGHSIDER Frame-R1 TYPE 3, E-approved.

Every centimeter matters when fitting the headlight between the two fork tubes. Thanks to the aluminium ring, it is possible for the first time to independently mount different LED projectors on the motorcycle. The deliberate absence of a headlight housing allows for an unbeatable mounting position, as well as better cooling of the LED unit.

Seeing better also means being seen better. Whether you want to replace it for better night visibility, improved daytime recognition, or to give your bike a more attractive look, if you are looking for a stylish and innovative headlight, the FRAME-R1 LED is an excellent choice.

For variable headlight mounting, two different mounting systems are available.

• Side mounting, the conventional screw connection on the side of the lamp holder.
• Bottom mount, fixing from below for screwing onto the fork bridge.

The side mounting brackets can be installed in three positions, allowing for compensation of an installation depth of 32 mm and a width of 46 mm.

Features:

• Round 7-inch headlight with CNC mounting ring and mounting kit
• MOUNTING WITHOUT headlight housing
• Improves cooling
• Numerous installation options
• Flat mounting
• Modern, stylish, and innovative optics
• Chrome reflector with black cover
• High beam, low beam, and parking light
• Asymmetrical light distribution

Dimensions:

• Diameter A = 200 mm
• Diameter GA = 168 mm
• Diameter I = 160 mm
• T = 61 mm
• R = 10 mm

Connections / power consumption (3-pin connector):

• Black cable = ground (-)
• Red cable = low beam (+), power consumption: at 12 Volt, 18 Watt, approx. 1132 lumen
• White cable = high beam (+), current consumption: at 12 Volt, 30 Watt, approx. 1770 lumen
• Brown cable = parking light (+), current consumption: at 12 Volt 0.7 Watt

Delivered individually
