Motorbike headlight Yuma 2 Type 8

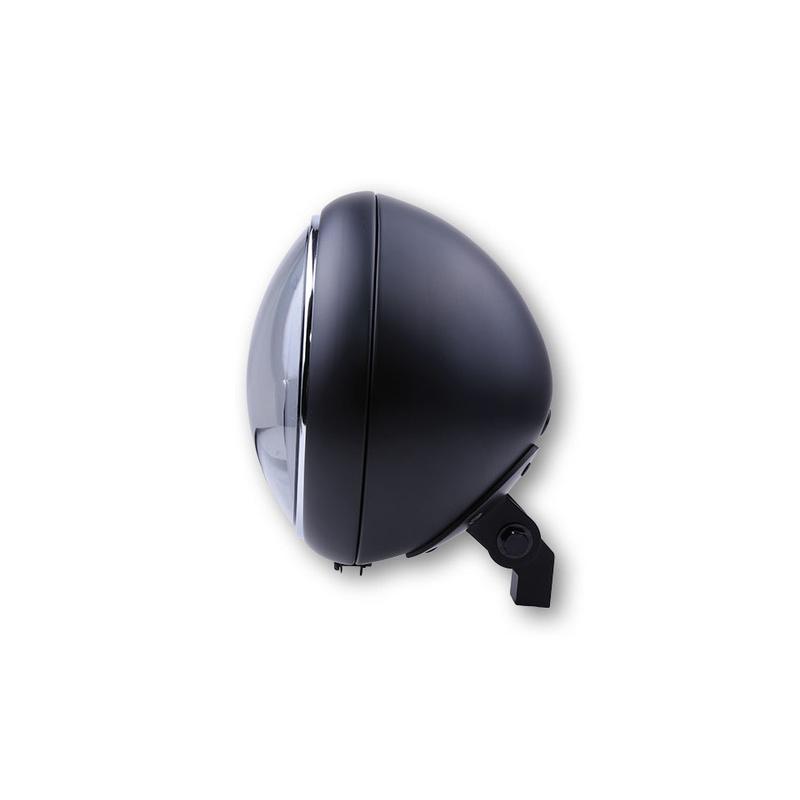

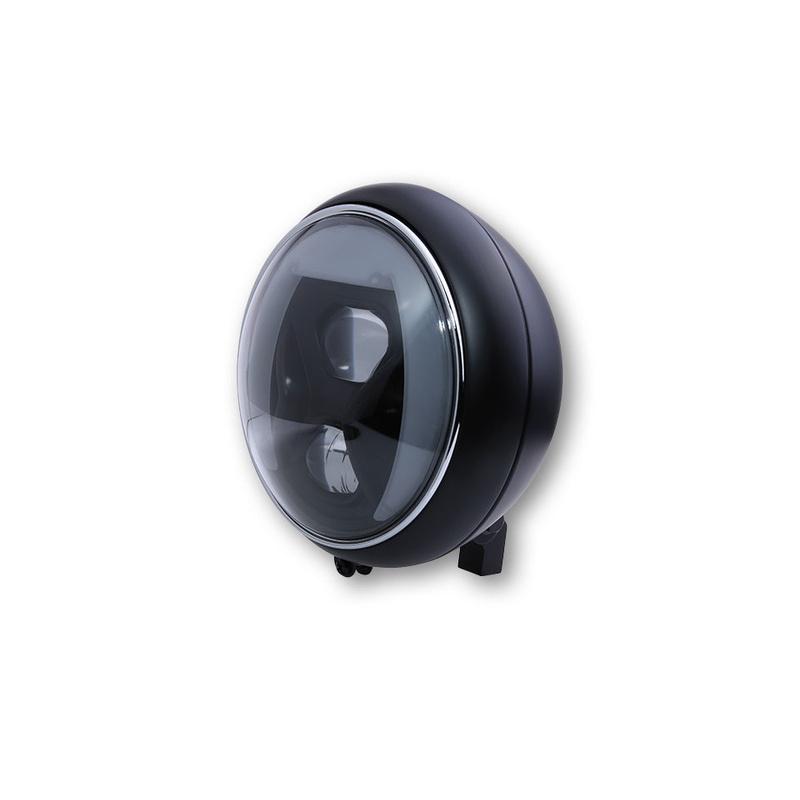

LED headlight HIGHSIDER Yuma 2 Type 8, 7 inches, bottom mount, E-approved.

Powerful LED headlight with high beam, low beam, and parking lights. The standout feature of this impressive 7-inch main headlight is the LED lighting technology it contains and its bottom mount, which allows the headlight to be positioned closer or further away from the steering head by flipping it. The upper part of the headlight illuminates the low beam, and when the high beam is on, the lower part lights up as well.

The Yuma 2 Type- 3 is also equipped with a chrome insert - approved only for right-hand traffic.

Features:

• Bulb: LED
• High beam, low beam, and parking light functions
• Glass: transparent
• Reflector: asymmetrical
• Housing: metal
• Mounting point: at the bottom

Dimensions:

• Housing diameter: 210 mm
• Projector insert diameter: 178 mm
• Depth: 150 mm
• Thread: M8

Connections:

• White wire = low beam (+)
• Blue wire = high beam (+)
• Green wire = ground (-)
• Extra grey wire = LED position light (+)
• Extra black wire = ground (-)

Supplied individually.
