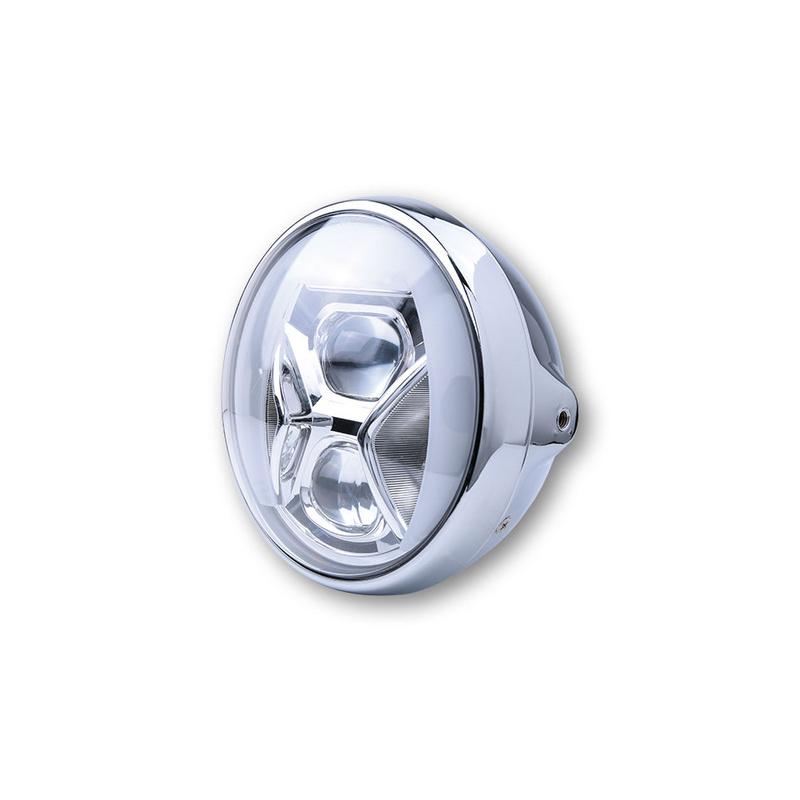

Led headlight British Style Type 8

LED headlight HIGHSIDER Brisith-Style Type 8, 7 inch E-Approved

- See and be seen! - This is of paramount importance to motorcyclists.

The TYPE 8 LED daytime running light with position light is the ideal way to improve visibility during the day. Daytime running lights are switched on correctly on the vehicle without the need for a control box or additional switch, which complies with regulations and simplifies installation.

The HIGHSIDER LED headlamp with cornering light offers clear advantages over a conventional headlamp. When the motorcycle is leaning into a bend, additional lighting is activated. This makes it easier to see the bend and what's behind.

To switch from daytime to low beam:
Press the high beam/turn signal button briefly (approx. 1 second) and release as soon as the low beam is activated. The low beam is then permanently activated.

Lamp dimensions :

• Diameter: 190 mm
• Depth: 140 mm
• Distance between mounting holes and end of housing: approx. 80 mm
• Headlight insert Ø: 178 mm

Mounting:
Side M8 x 1.25

Connections:

• Power input: 3-pin connector
• Red cable = low beam (+)
• White cable = high beam (+)
• Black cable = ground (-)
• Separate cable (round connector) :
• Red cable = LED position light (+)

Supplied individually

The resistor supplied is designed for the R nineT (2014), but may also be suitable forautres vehicle models.
This resistor prevents the position light error message.
