Led headlight Pecos type 7

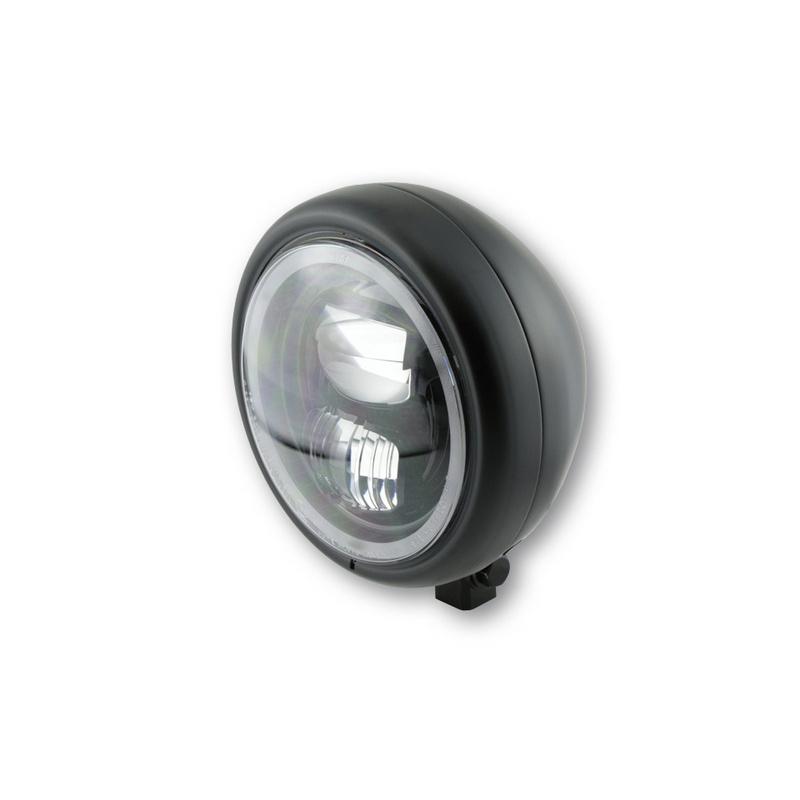

LED headlamp HIGHSIDER Pecos Type 7, 5 3/4 inch, bottom-mounted, E-approved.

Main headlamp with matt black metal housing for bottom mounting. The Pecos Type 7 features state-of-the-art lighting technology and an extraordinary lighting design. The low beam lights come on in the upper part of the headlamp, and when the high beam lights are switched on, both zones come on.

Properties :

• Light source: LED
• Glass: transparent
• Black reflector with light ring
• Point Mounting: bottom

Dimensions:

• Case diameter: 165 mm
• Depth: 135 mm

Connections :

• Power consumption: 3-pin connector
• White = low beam (+)
• Red = High beam (+)
• Black = Ground (-)
• Green = Position light (+)

Supplied individually
