Led headlight Pecos type 6

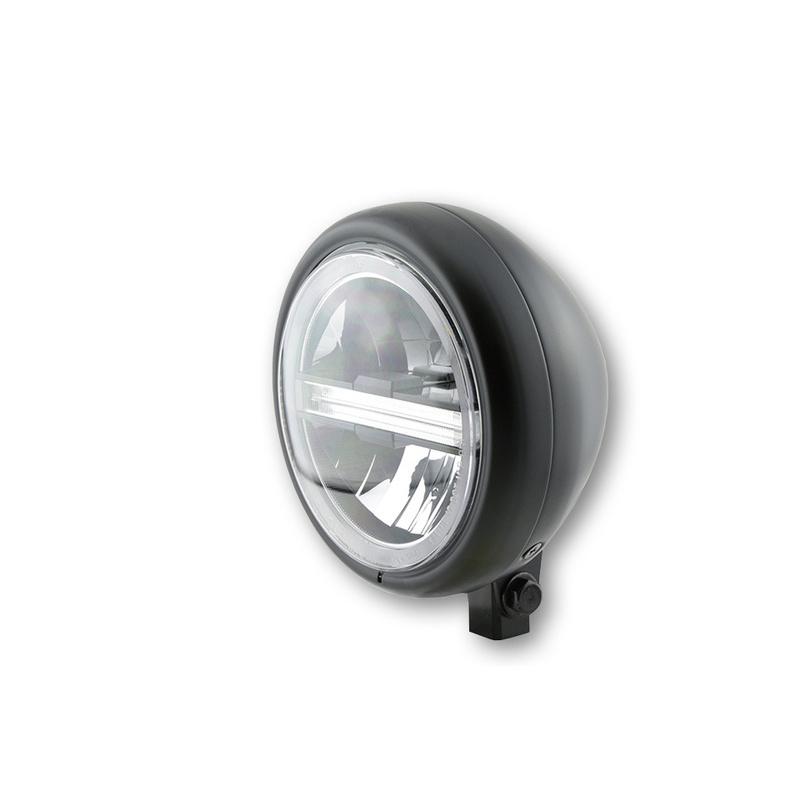

LED headlamp HIGHSIDER Pecos Type 6 LED, 5 3/4 inch with TFL, E-approved lower mounting.

The PECOS TYP 6 is characterized by state-of-the-art lighting technology and extraordinary design. The special feature of this LED headlamp is the additional equipment with daytime running light and parking light ring. Daytime running light, for even greater visibility in road traffic, is located in the center band. Low beam lights are switched on in the upper half of the headlamp, and when high beam lights are switched on, both halves light up.

Features :

• Bulb: LED
• Glass: transparent
• Chrome-plated reflector with TFL/DRL and parking light ring
• Point Mounting: bottom

Dimensions:

• Housing diameter: 165 mm
• Depth: 135 mm

Connections :

• Power input: 3-pin connector
• White = low beam (+)
• Blue = high beam (+)
• Green = ground (-)
• Red = TFL/DRL (+) on ignition plus
• Brown = position light (+)

Supplied individually
