Headlight insert type 6 led

LED headlamp insert HIGHSIDER 5 3/4 inch Type 6, E-approved

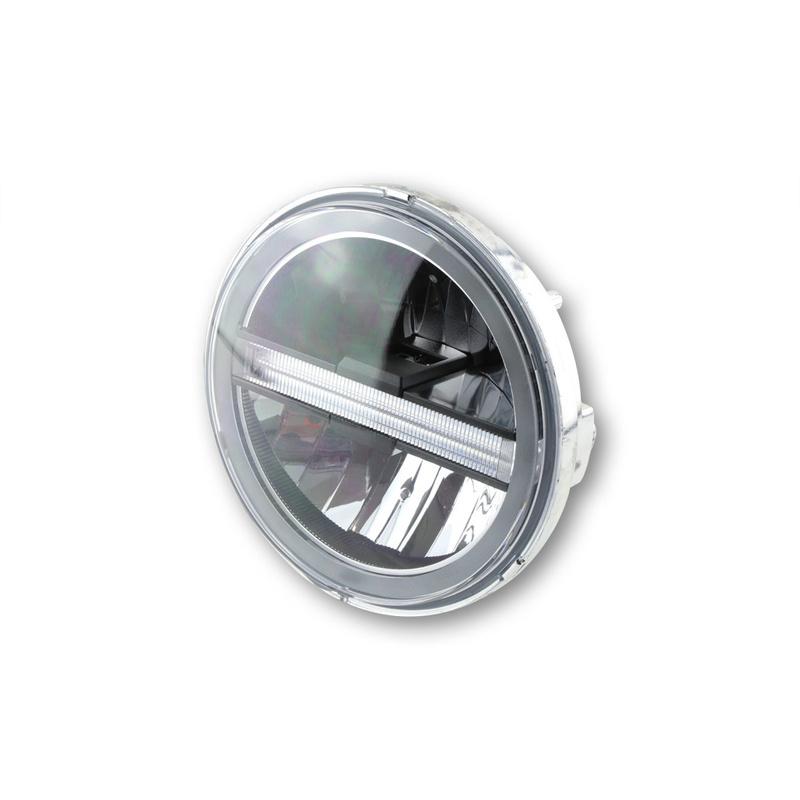

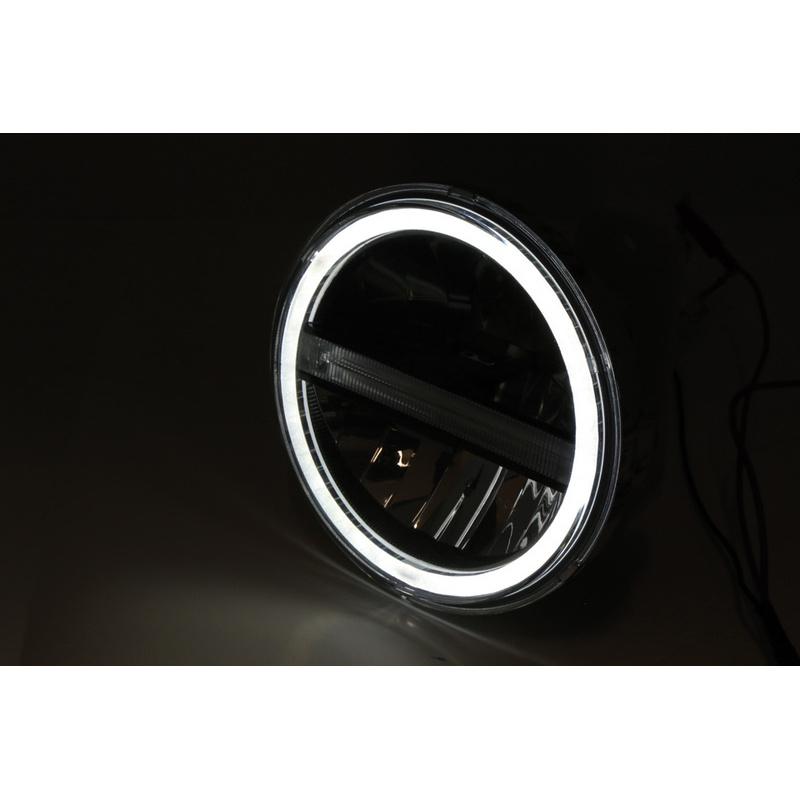

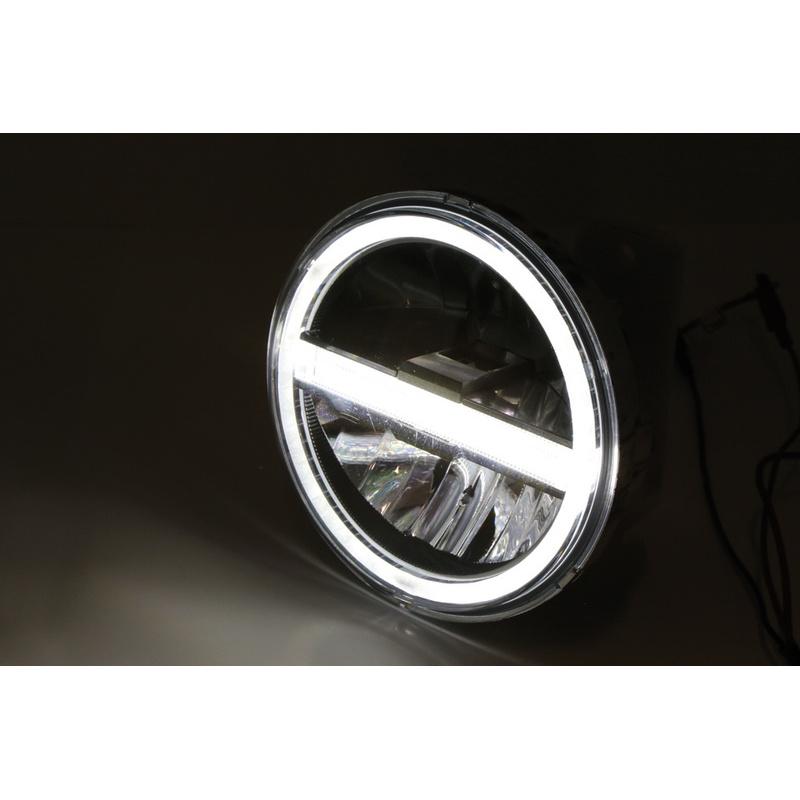

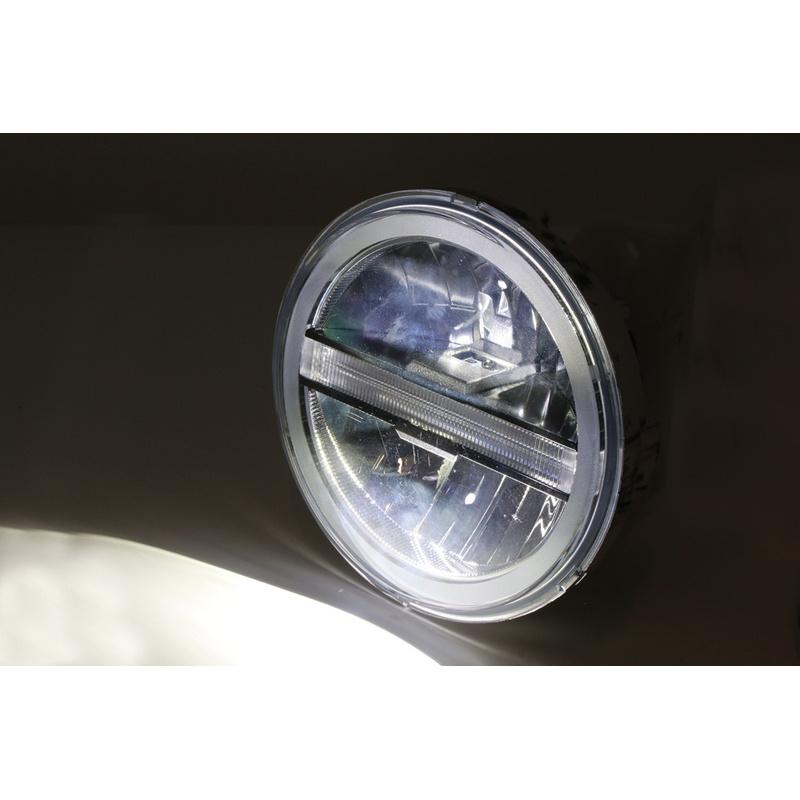

This round, chrome-plated reflector is equipped with high beam, low beam, daytime running light and a parking light ring. The daytime running light is located in the middle of the strip, and the low beam in the upper half of the insert. When the high beam is switched on, both halves light up.

Dimensions :

• Diameter A = 143 mm
• GA diameter = 133 mm
• Diameter I = 131 mm, T = 70 mm, R = 13 mm
• Cable length: 400 mm

Power consumption: (3-pin connector)

Connections:

• White = crossover (+)
• Blue = main beam (+)
• Green = ground (-)
• Red = TFL/DRL (+) to ignition plus
• Brown = parking light (+)

Supplied in 1 piece, including 1 connector housing.

Daytime running lights can also be used on vehicles without a light switch. For this purpose, for example B., the following components are required:

- Order No. 1107969 HIGHSIDER DRL CONTROL- BOX CB1 (switches between low beam and daytime running light)
