Smart Controller Dialdim

Lighting Controller DialDim™

Provides a complete solution with easy control of all lighting functions.

• Switch on/off and dim two additional lighting sets independently from a single switch.
• The LED halo switch displays your exact settings
• Unlock intelligent flash functions that can turn off your auxiliary lights with your indicator, flash your auxiliary lights like an indicator, or flash your lights when you honk your horn.

On/Off & Dim

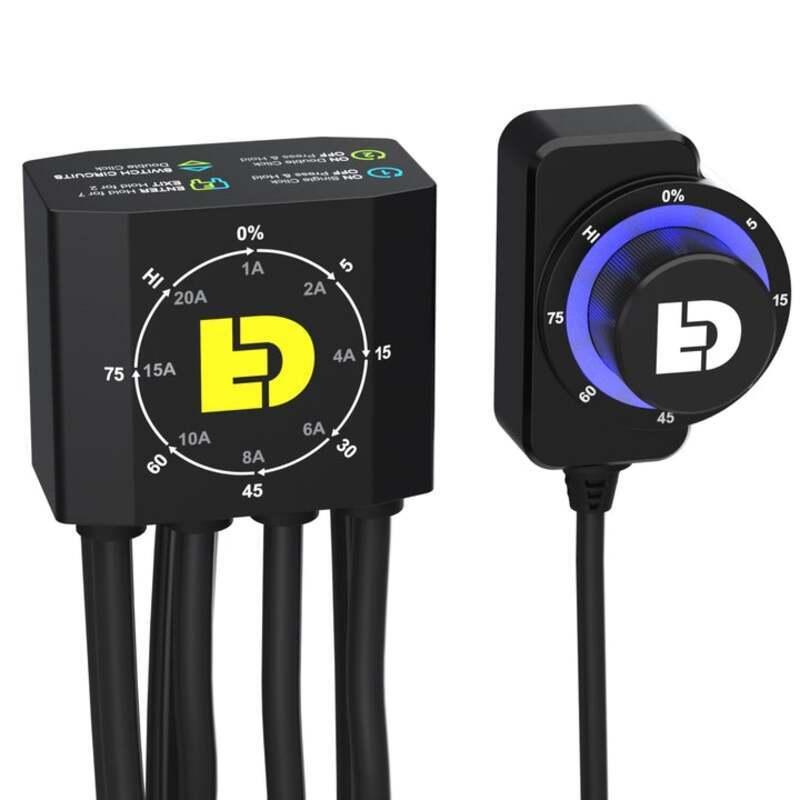

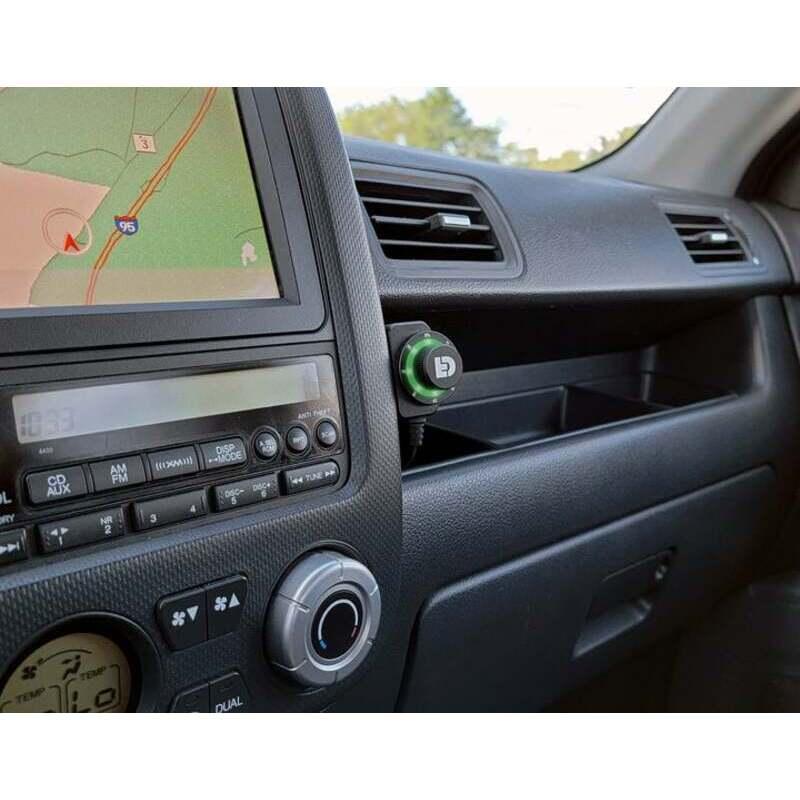

Control two sets of on/off lights and the dimming level independently using the DialDim™ switch. The blue halo controls lighting set 1 and the green halo controls lighting set 2. Double-click to switch between the two circuits.

Up/Down Synchronization
Your auxiliary lights will automatically switch from your current setting to full brightness with the original high beam switch. Just connect the blue input wire to your vehicle's high beam circuit to activate this function.

Stealth Mode
A smart 0% dimming setting on the switch allows your lights to remain off in normal driving conditions, but they will switch to 100% brightness with your vehicle's high beam switch. In this mode, the lights also respond to indicator signals and the horn, but remain off when not detected.

Cancellation with Indicators
When activated, the main lights (circuit blue 1) turn off in sync with your original indicator. Simply connect the yellow and orange input wires to your vehicle's indicator circuit to activate this function.

Flash as Indicator
When this function is activated, your lights (circuit green 2) will flash in sync with your original indicators. Just connect the yellow and orange input wires to your vehicle's indicator circuit to enable this function.

Strobe with Horn
When this function is activated, the auxiliary lights of both circuits flash at 4 Hz when you honk your horn. Just connect the green input wire to your vehicle's horn circuit to enable this function.

Electronic Fuse Circuits

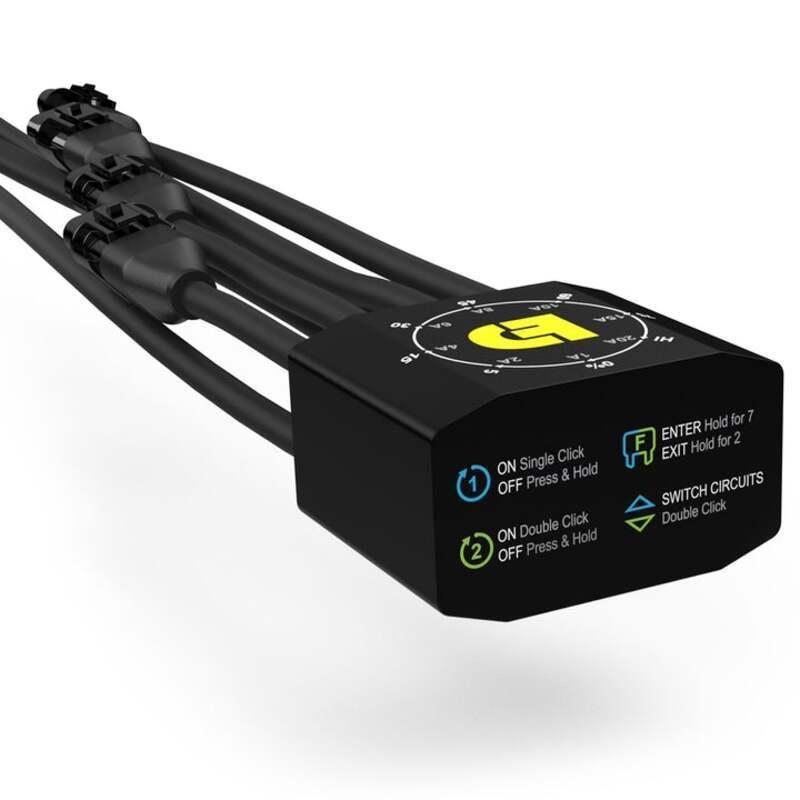

Both lighting circuits are electronic fuse and can be set directly from the switch itself! The halo lights up red to warn you of a circuit fuse trigger.

Voltage Indicator
At vehicle startup, the switch halo flashes green to indicate a healthy battery voltage or red to indicate a battery voltage below 11.8 volts.

Low Voltage Cut-off
If the battery voltage drops below 10.8 V, the lights will not turn on, preventing you from getting stranded. The switch halo flashes 4 red LEDs to indicate low voltage condition.
