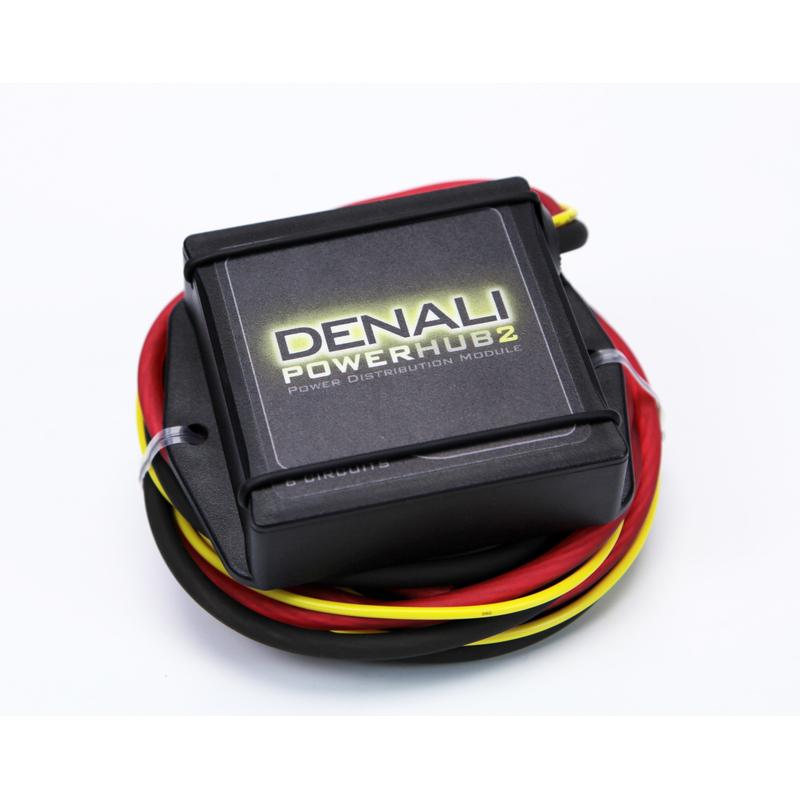

Power supply module PowerHub2

The DENALI PowerHub2 Power Distribution Module allows you to safely connect up to 6 electronic devices to your motorcycle. The module is CANbus compatible and includes six 15 amp output connections with fuses, six ground terminals, and a plug-and-play wiring harness for direct connection to the battery. Each of the six outputs can be individually switched on or off when the motorcycle is turned on. Instead of attaching multiple terminals to your battery, use a PowerHub2!

DENALI designed the PowerHub2 with CANbus safety to make the installation of electrical components simple and easy. Each device has six individually protected outputs. Just connect the fuse either left or right on the circuit board to operate the accessories permanently or link them to the motorcycle's ignition. The entire unit is designed for 30 amps (360 watts). Each of the six circuits can handle up to 15A (180W) each - without exceeding a total of 30 Amps simultaneously.

Features:

• Waterproof, compact, and sturdy
• 30 amp Tyco/Bosch micro relays (replaceable)
• Choice between switched power and constant power
• 6 circuits that can handle up to 15A (180W) each
• CANbus compatible
• Dimensions: 76x101x25mm

The kit includes:

• 1.5m long wiring harness to connect the PowerHub2 to the battery (switched trigger cable with Posi-tap connector included)
• Adhesives for quickly attaching the PowerHub2 to a flat surface
• 2 ring terminals, circlip closures
