Note: The CE Declaration of Conformity can be found with the User Manual inside the product itself.

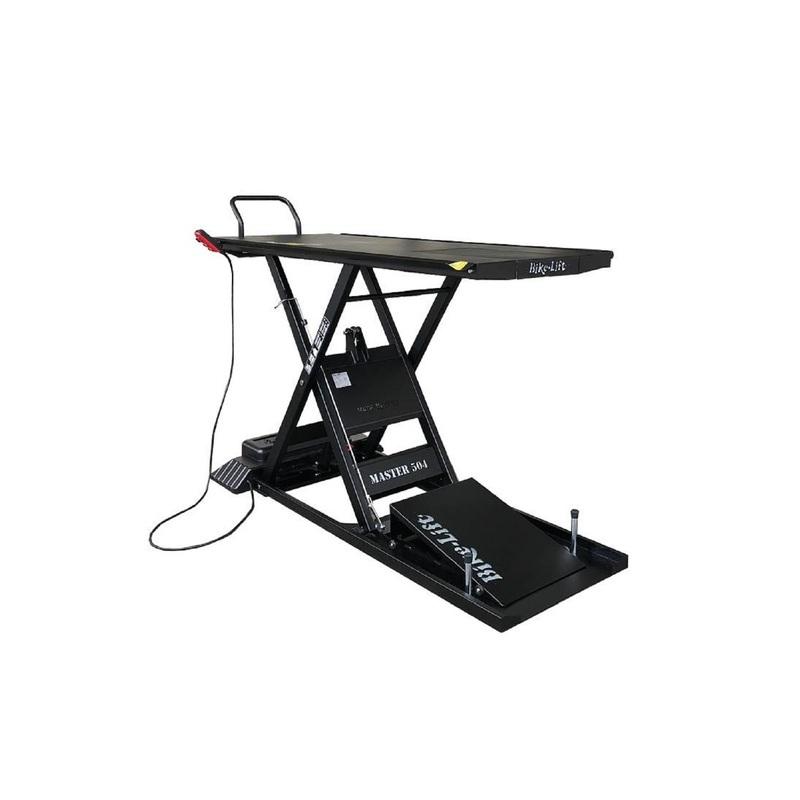

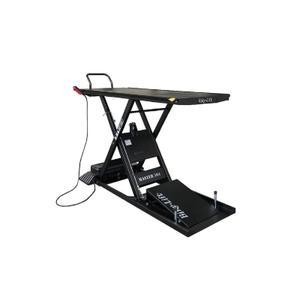

Designed for all types of motorcycles, the Master 504 Gate offers multiple possibilities. The sliding rear hatch makes it easy to access the wheel for simplified intervention. Functional, reliable, and easy to use, it is the benchmark for lift tables. The access ramp slides under the table.

Technical specifications:

Mechanism: Electro-hydraulic (with remote control)
Power supply: 230V / 50Hz
Maximum capacity: 500Kg
Maximum height: 130cm
Minimum height: 20cm
Safety notches: 8
Sliding rear hatch
Platform dimensions: 210 x 75cm
Gutter dimensions: 220 x 8.5cm
Access ramp dimensions: 70 x 50cm
Rear hatch dimensions: 60 x 36cm
Overall dimensions: 220 x 92cm
Weight: 250Kg

Included equipment:

Standard side gutters
Central ramp
Stop buffer
Delivered in a wooden crate
